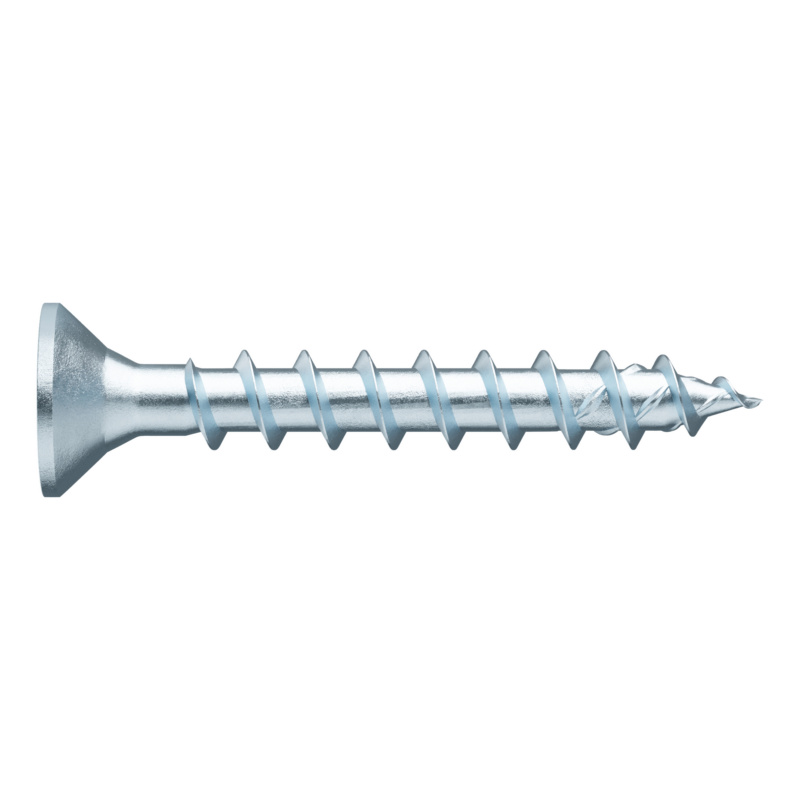

Tréskrúfa ASSY®4 upps 3x10 RW10

Vörunúmer: 0190 030 10

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	RW10
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Double thread
Thread design	Full thread
Area of application	UniversalFurnitureBodyFitting
Shape of tip	Tip with ring thread
Nominal diameter (d)	3 mm
Length (l)	10 mm
Head diameter (dh)	5.9 mm
Head height (k)	2.05 mm
Thread length (lg)	7 mm
Core diameter	1.95 mm
Angle of the tip	20 Degree
Product weight (per item)	0.42 g
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply woodHardwoodLVL
Min./max. screw-in angle	45-90 Degree
