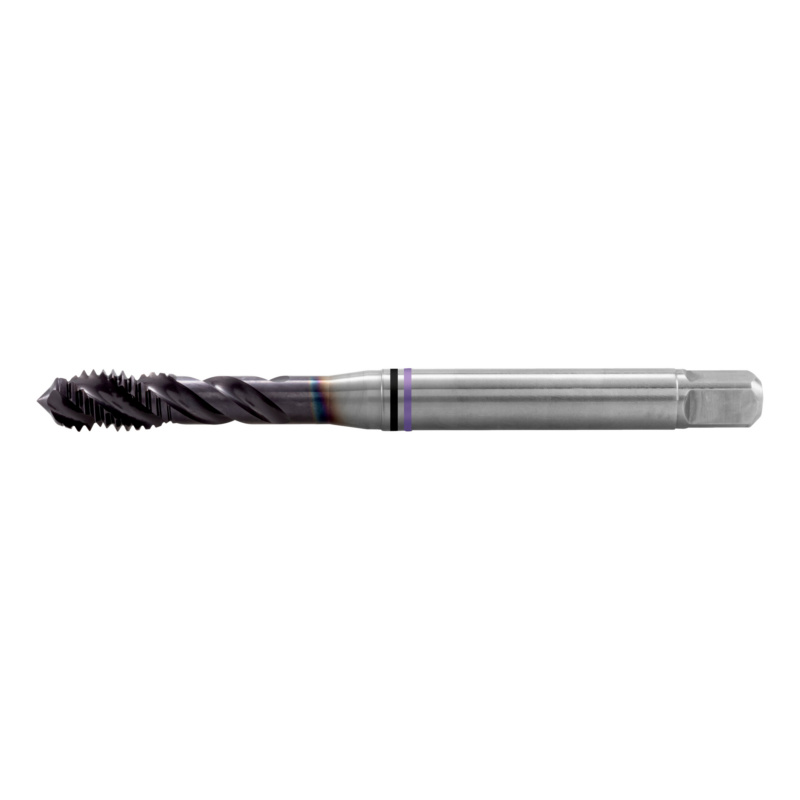

Vélatappi HSCo Multi longlife 10mm snúinn

Vörunúmer: 0658 841 000

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Magma multilayer coating
Form	C
DIN	371
Thread type	Metric thread
Pitch	1.5 mm
Shaft diameter	10 mm
Length	100 mm
Material to be processed	Steel, cast metal, stainless steel, titanium, special alloy, hard and touch material, non-ferrous metal
Suitable for machine type	Milling/drill center. Pedestal drilling machine.
Service life (points system)	4 of 4 points
Quality	ZEBRA-Premium
Shank style	Cylindrical with square drive
Cutting material	HSCo
Versatility (points system)	4 of 4 points
Size of square	8 mm
Thread type x nominal diameter	M10
Hole type	Blind hole ≤ 2.5xD
Core hole diameter	8.5 mm
Twist angle	45° (right)
Tolerance of screw taps	ISO 2X (6HX)
Suitable for tensile strength up to	1200 N/mm²
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	4 of 4 points
Chip formation (points system)	4 of 4 points
