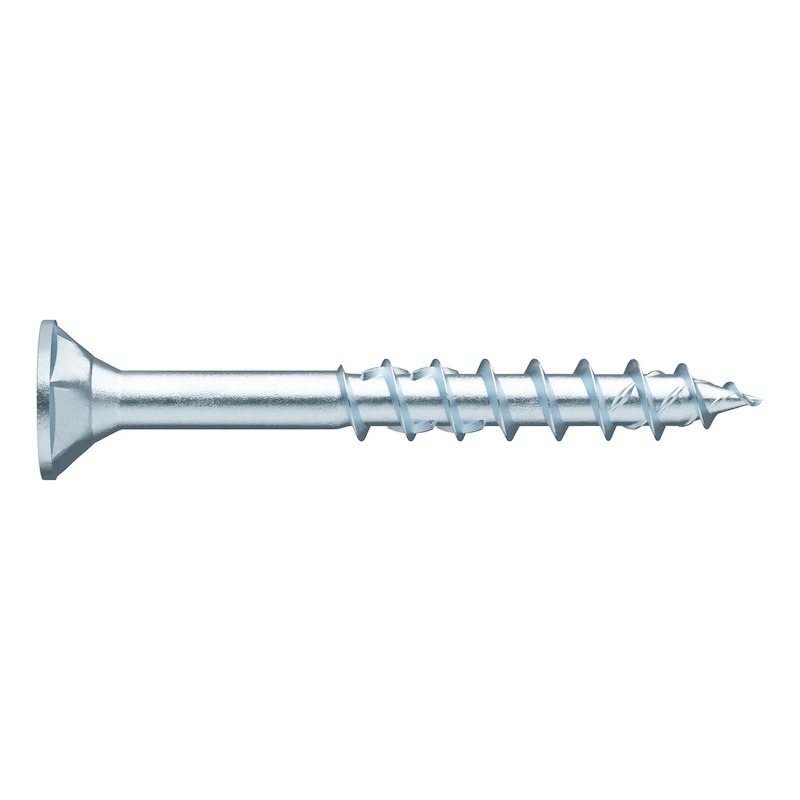

Tréskrúfa ASSY® m.legg 6x60 AW30

Vörunúmer: 0170 160 60

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	AW30
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Partial thread
Head details	Milling pockets
Area of application	On rafter insulationRoofElement constructionTimber constructionTimber panel constructionInterior fittingStructural woodworkUniversal
Shape of tip	Tip with counter thread
Nominal diameter (d)	6 mm
Length (l)	60 mm
Head diameter (dh)	12 mm
Head height (k)	4.2 mm
Thread length (lg)	37 mm
Core diameter	3.9 mm
Angle of the tip	34 Degree
Suitable for use in the following materials	Board ply woodWoodDerived timber productHardwoodLVLSoftwood
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
