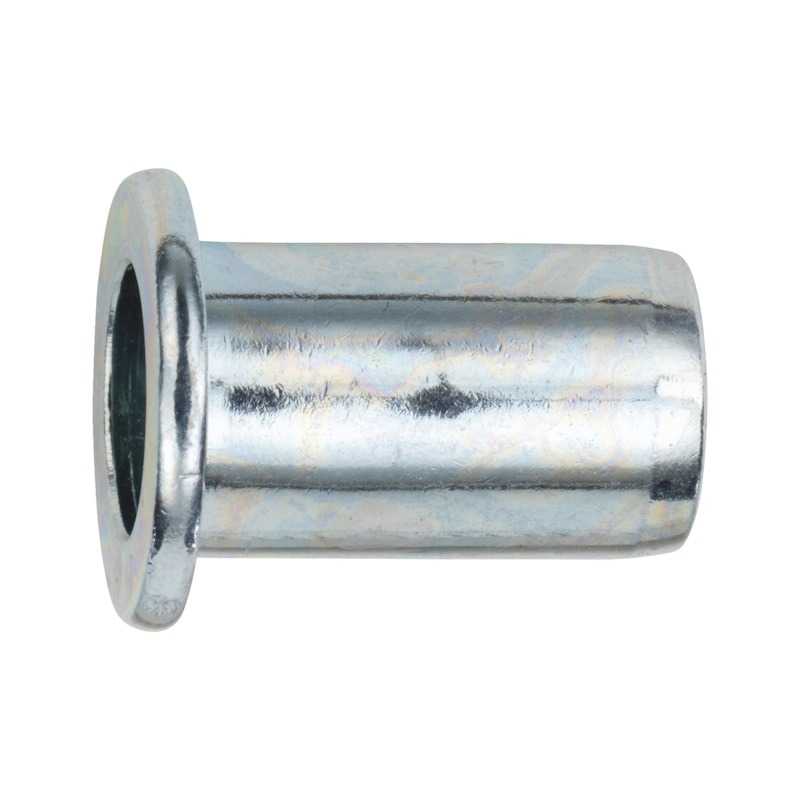

Hnoðró m.flansa M6

intelisale.product.documents
Vörunúmer: 0917 260
×
products.pickngo
products.pickngo.modaltitle ×
sjá allar tegundir
Fljótleg afhending
Ókeypis sendingarkostnaður
Tæknilegar upplýsingar
Nafn á eigindi Eigindargildi
Material Steel
Surface Galvanised
Length (l1) 16 mm
Head height (k1) 1.5 mm
Head type Flat round head
Thread type x nominal diameter (D) M6
Outer diameter (d2) 8.9 mm
Drill hole diameter 9 mm
Shear-fracture load 4400 N
Tensile fracture load 15000 N
Head diameter (d1) 13 mm
Min./max. grip range (s1) 0,5-3,0 mm
Max. tightening torque 10 Nm
Skrifaðu þína eigin umsögn
  • Aðeins skráðir notendur geta skrifað umsagnir
*
*
  • Slæm
  • Frábær
*
*
*

Vinsælar vörur Skoða vörur

Tæknilegar upplýsingar
Material Steel
Surface Galvanised
Length (l1) 16 mm
Head height (k1) 1.5 mm
Head type Flat round head
Thread type x nominal diameter (D) M6
Outer diameter (d2) 8.9 mm
Drill hole diameter 9 mm
Shear-fracture load 4400 N
Tensile fracture load 15000 N
Head diameter (d1) 13 mm
Min./max. grip range (s1) 0,5-3,0 mm
Max. tightening torque 10 Nm
