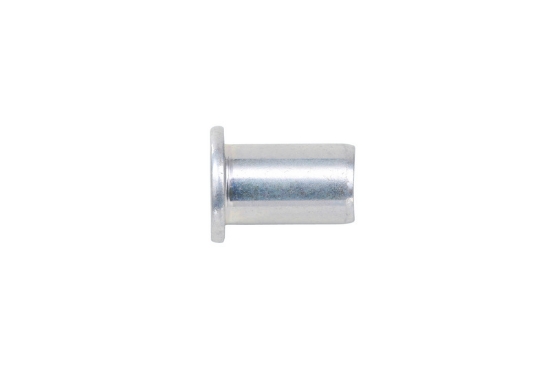

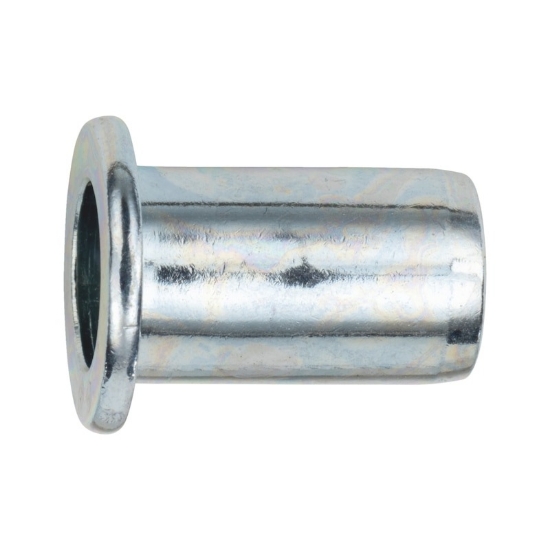

Hnoðró m.flansa M10

Vörunúmer: 0917 210 0

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Length (l1)	24 mm
Head height (k1)	1.5 mm
Head type	Flat round head
Thread type x nominal diameter (D)	M10
Outer diameter (d2)	12.9 mm
Drill hole diameter	13 mm
Shear-fracture load	7000 N
Tensile fracture load	32000 N
Head diameter (d1)	17 mm
Min./max. grip range (s1)	0,8-3,5 mm
Max. tightening torque	48 Nm
