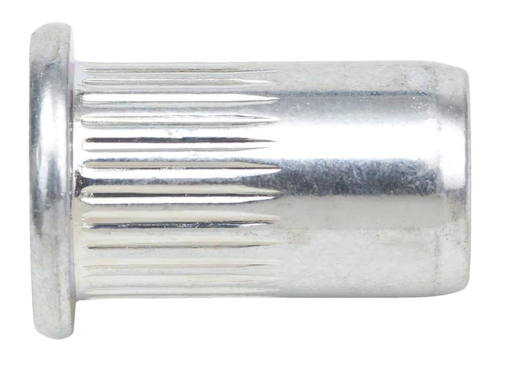

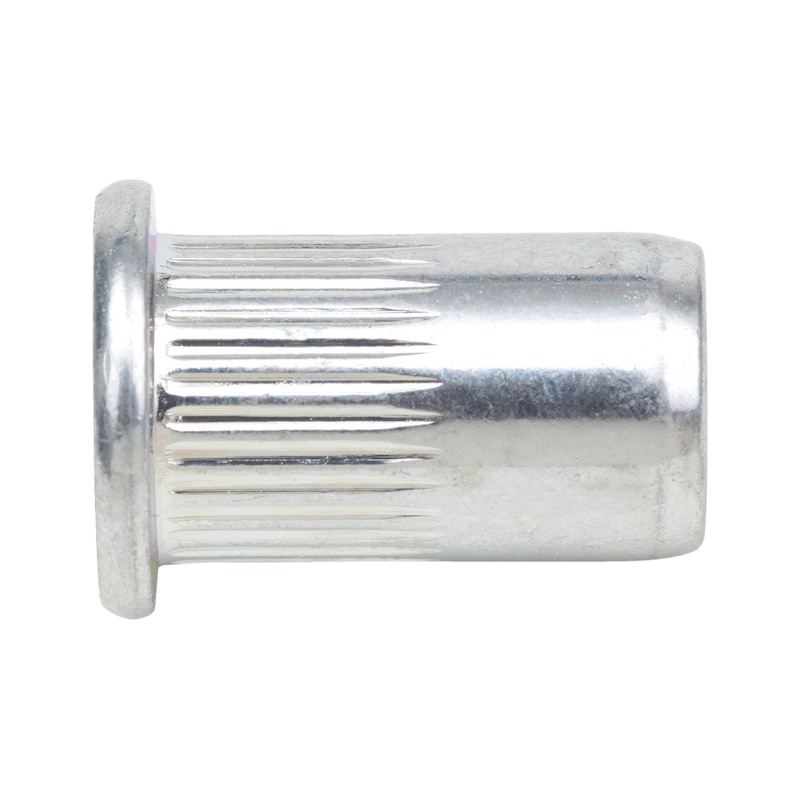

A2 Hnoðró með flangs, riffluð M6

Vörunúmer: 0942 100 6

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
RoHS-compliant	Yes
Thread type x nominal diameter (D)	M6
Length (l1)	16 mm
Head diameter (d1)	12 mm
Outer diameter (d2)	8.9 mm
Head height (k1)	1.6 mm
Min./max. grip range (s1)	0,5-3,0 mm
Tensile fracture load	20580 N
Shear-fracture load	5630 N
Max. tightening torque	22.2 Nm
Drill hole diameter	9 mm
Shank detail	With knurled shank
Head type	Dome head
