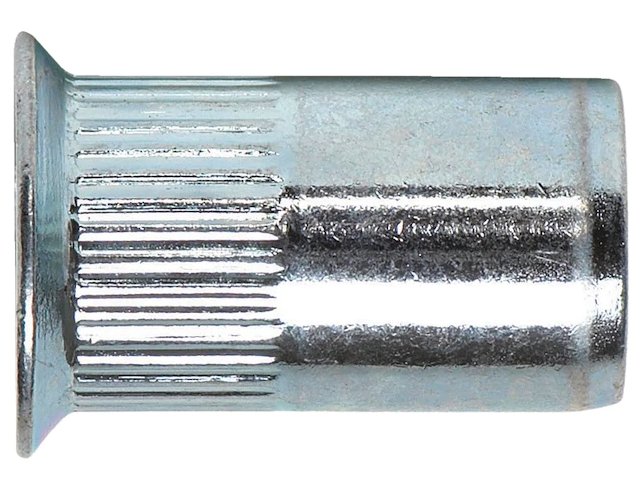

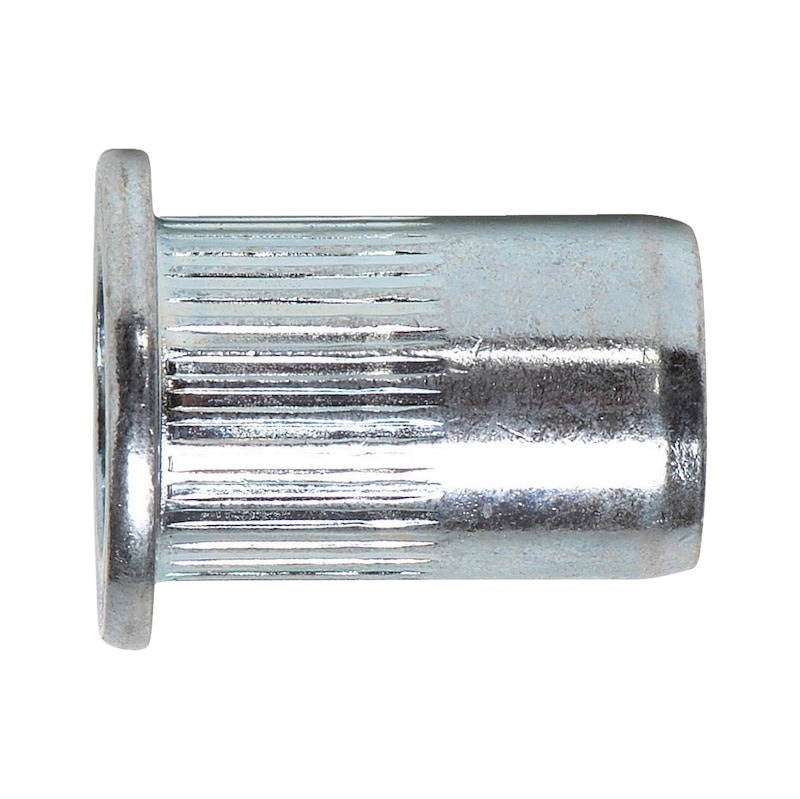

Ál hnoðró m.fláns M5 6,9x16,0mm

Vörunúmer: 0948 220 5

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
RoHS-compliant	Yes
Drill hole diameter	7 mm
Shank detail	With knurled shank
Material	Aluminium
Surface	Plain
Length (l1)	16 mm
Head height (k1)	1.1 mm
Head type	Dome head
Thread type x nominal diameter (D)	M5
Outer diameter (d2)	6.9 mm
Shear-fracture load	1170 N
Tensile fracture load	4900 N
Head diameter (d1)	10 mm
Min./max. grip range (s1)	3,0-5,5 mm
Max. tightening torque	5 Nm
