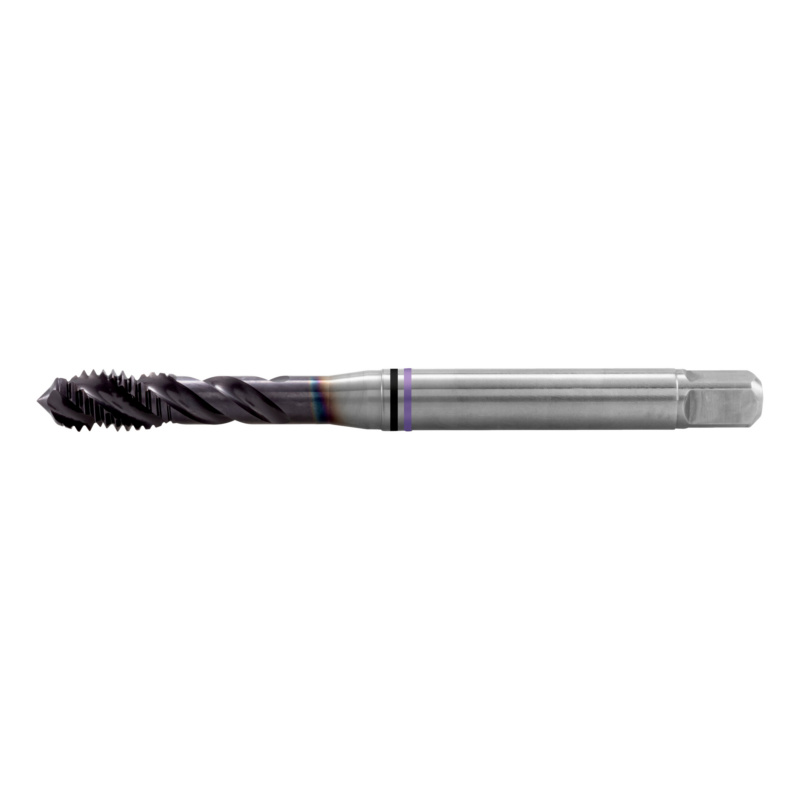

Vélatappi HSCo Multi longlife 5mm snúinn

Vörunúmer: 0658 840 500

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Magma multilayer coating
Form	C
DIN	371
Thread type	Steel, Cast metal, Stainless steel, Titanium, Special alloy, Hard and tough material, Non-ferrous meta
Pitch	0.8 mm
Shaft diameter	6 mm
Length	70 mm
Suitable for machine type	Milling/drill center, Pedestal drilling machine
Service life (points system)	4 of 4 points
Quality	ZEBRA-Premium
Shank style	Cylindrical with square drive
Cutting material	HSCo
Versatility (points system)	4 of 4 points
Size of square	4,9 mm
Thread type x nominal diameter	M5
Hole type	Blind hole ≤ 2.5xD
Core hole diameter	4.2 mm
Twist angle	45° (right)
Tolerance of screw taps	ISO 2X (6HX)
Suitable for tensile strength up to	1200 N/mm²
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	4 of 4 points
Chip formation (points system)	4 of 4 points
