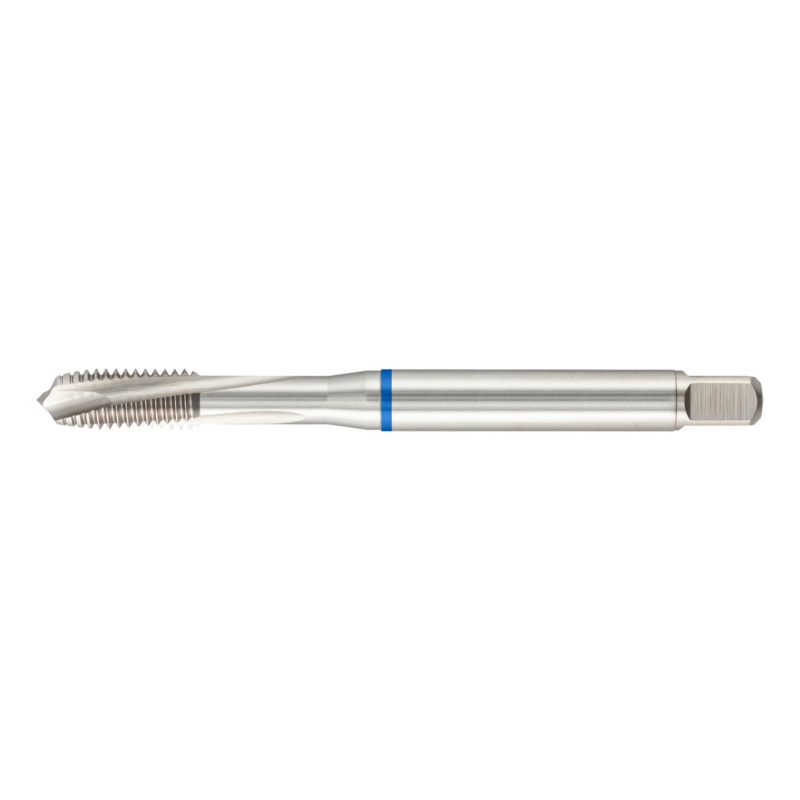

Vélatappi 8mm blár stál beinn

Vörunúmer: 0653 700 800

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Bare
Form	B
DIN	371
Thread type	Metric thread
Pitch	1.25 mm
Thread length (metric thread)	16 mm
Shaft diameter	8 mm
Length	90 mm
Material to be processed	Steel
Suitable for machine type	Milling/drill centerPedestal drilling machine
Service life (points system)	2 of 4 points
Quality	ZEBRA-Premium
Shank style	Cylindrical with square drive
Material sub-group	General structural steelsNon-alloyed tempering steels
Cutting material	HSCo
Versatility (points system)	1 of 4 points
Size of square	6.2 mm mm
Thread type x nominal diameter	M8
Hole type	Clearance hole ≤ 3xD
Core hole diameter	6.8 mm
Twist angle	0°
Tolerance of screw taps	ISO 2 (6H)
Suitable for tensile strength up to	850 N/mm²
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	2 of 4 points
