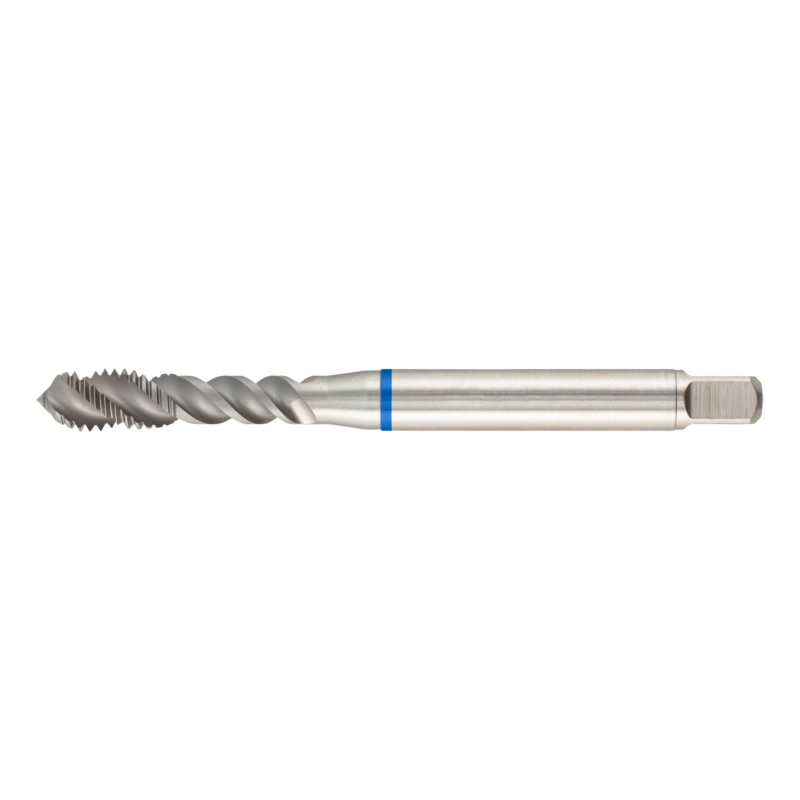

Vélatappi 4mm blár stál snúinn

Vörunúmer: 0653 800 400

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Bare
Form	C
DIN	371
Thread type	Metric thread
Pitch	0.7 mm
Thread length (metric thread)	8 mm
Shaft diameter	4.5 mm
Length	63 mm
Material to be processed	Steel
Suitable for machine type	Milling/drill centerPedestal drilling machine
Service life (points system)	2 of 4 points
Quality	ZEBRA-Premium
Shank style	Cylindrical with square drive
Material sub-group	General structural steelsNon-alloyed tempering steels
Cutting material	HSCo
Versatility (points system)	1 of 4 points
Size of square	3.4 mm
Thread type x nominal diameter	M4
Hole type	Blind hole ≤ 2.5xD
Core hole diameter	3.3 mm
Twist angle	40° (right)
Tolerance of screw taps	ISO 2 (6H)
Suitable for tensile strength up to	850 N/mm²
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	2 of 4 points
