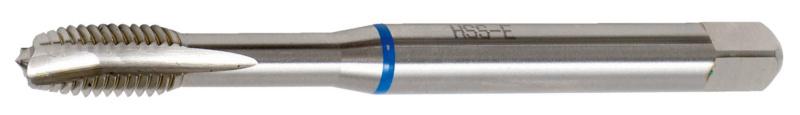

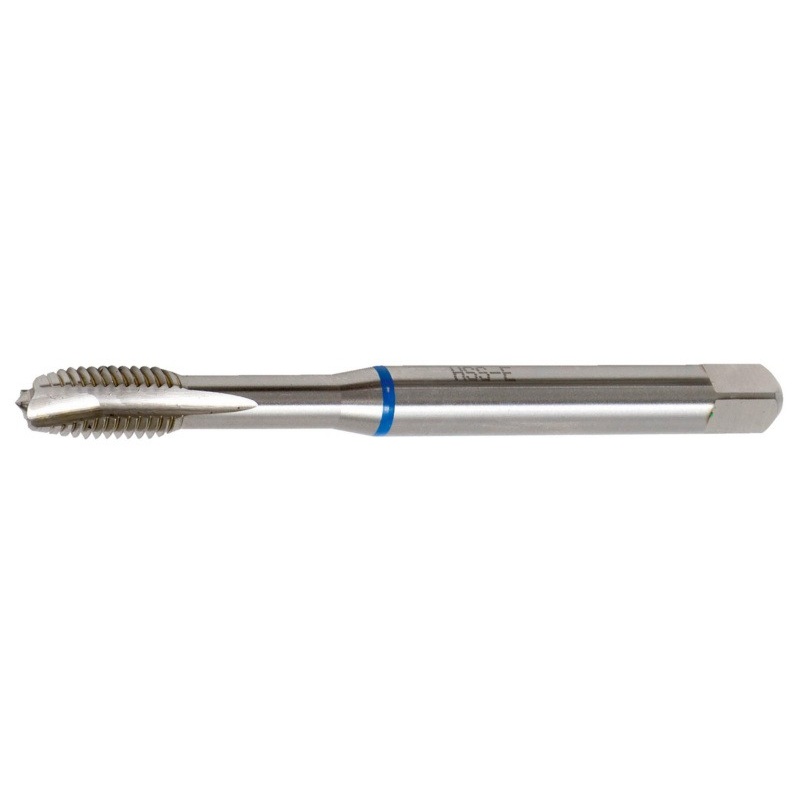

Vélatappi 20mm blár stálbein

Vörunúmer: 0653 20

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Bare
Form	B
DIN	376
Thread type	Metric thread
Pitch	2.5 mm
Thread length (metric thread)	30 mm
Shaft diameter	16 mm
Length	140 mm
Material to be processed	Steel
Suitable for machine type	Milling/drill centerPedestal drilling machine
Service life (points system)	2 of 4 points
Quality	ZEBRA-Premium
Shank style	Cylindrical with square drive
Material sub-group	General structural steelsNon-alloyed tempering steels
Cutting material	HSCo
Versatility (points system)	1 of 4 points
Size of square	12 mm
Thread type x nominal diameter	M20
Hole type	Clearance hole ≤ 3xD
Core hole diameter	17.5 mm
Twist angle	0°
Tolerance of screw taps	ISO 2 (6H)
Suitable for tensile strength up to	850 N/mm²
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	2 of 4 points
