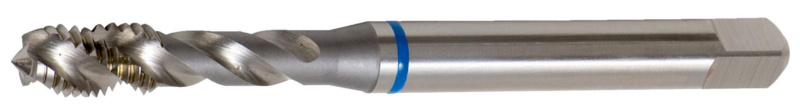

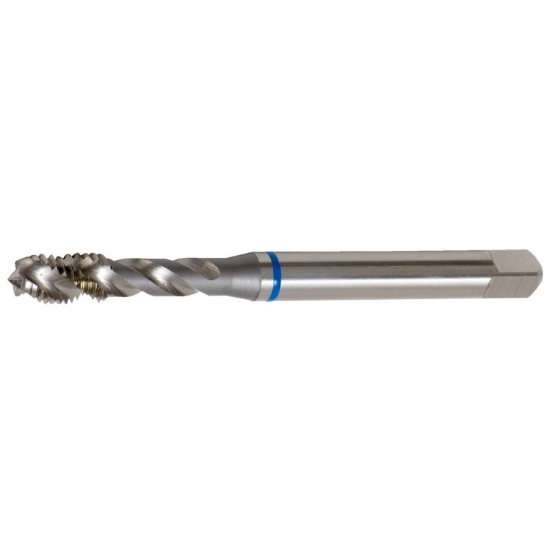

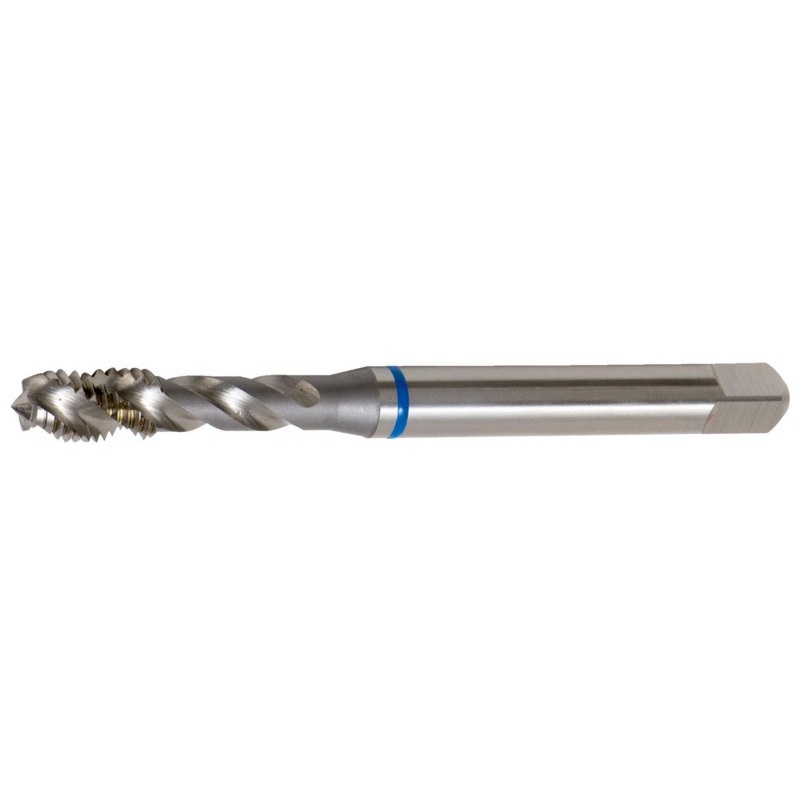

Vélatappi 18mm blár stál snúin

Vörunúmer: 0653 018

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Bare
Form	C
DIN	376
Thread type	Metric thread
Pitch	2.5 mm
Thread length (metric thread)	25 mm
Shaft diameter	14 mm
Length	125 mm
Material to be processed	Steel
Suitable for machine type	Milling/drill centerPedestal drilling machine
Service life (points system)	2 of 4 points
Quality	ZEBRA-Premium
Cutting material	HSCo
Versatility (points system)	1 of 4 points
Size of square	11 mm
Thread type x nominal diameter	M18
Hole type	Blind hole ≤ 2.5xD
Core hole diameter	15.5 mm
Tolerance of screw taps	ISO 2 (6H)
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	2 of 4 points
