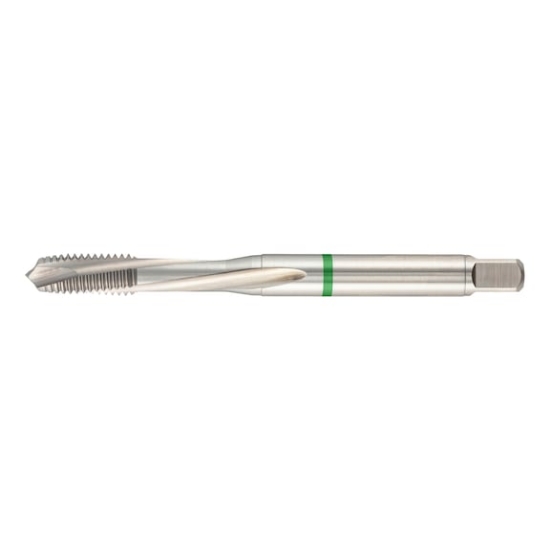

Vélatappi 12mm grænn A2 beinn

Vörunúmer: 0655 701 200

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Thread type	Metric thread
Material to be processed	Steel, Stainless steel
Hole type	Clearance hole ≤ 3xD
Suitable for machine type	Milling/drill center, Pedestal drilling machine
Quality	ZEBRA-Premium
Thread type x nominal diameter	M12
Pitch	1.75 mm
Length	110 mm
Shank diameter	9.0 mm
Size of square	7 mm
DIN	376
Cutting material	HSCo
Surface	Plain
Form	D
Core hole diameter	10.2 mm
Shank style	Cylindrical with square drive
Tolerance of screw taps	ISO 2X (6HX)
Suitable for tensile strength up to	1200 N/mm²
Service life (points system)	3 of 4 points
Trueness to gauge (points system)	4 of 4 points
Versatility (points system)	3 of 4 points
Chip formation (points system)	3 of 4 points
Cutting behaviour (points system)	3 of 4 points
Material of sub-group	Stainless steels, sulphurated, Stainless steels, austenitic, Stainless steels, martensitic, General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels
