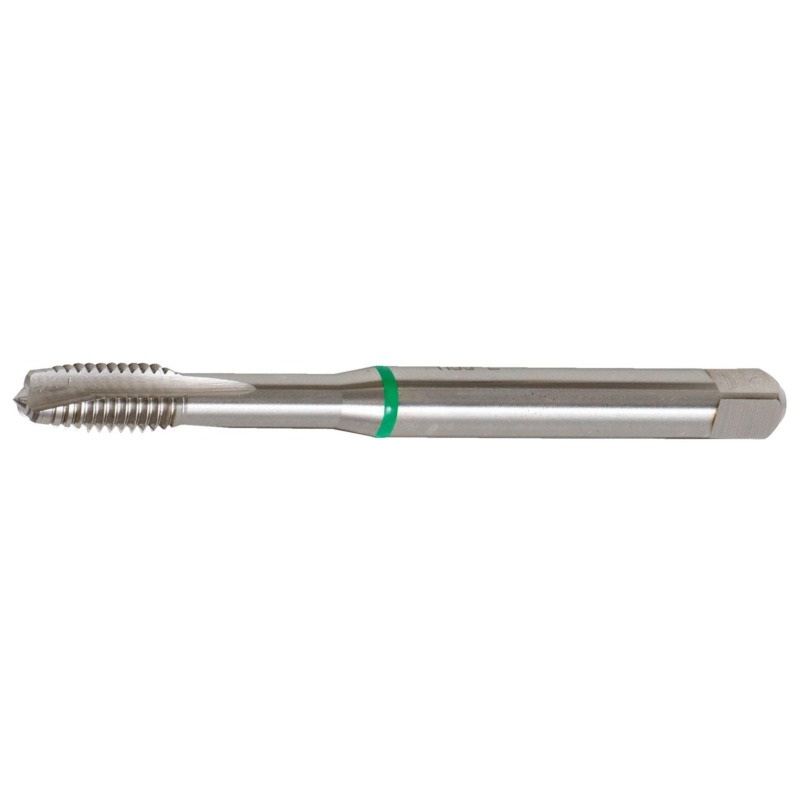

Vélatappi 12mm grænn A2 beinn

Vörunúmer: 0655 12

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Bare
Form	B
DIN	376
Thread type	Metric thread
Pitch	1.75 mm
Thread length (metric thread)	22 mm
Shaft diameter	9 mm
Length	110 mm
Material to be processed	Steel, Stainless steel
Suitable for machine type	Milling/drill centerPedestal drilling machine
Service life (points system)	2 of 4 points
Quality	ZEBRA-Premium
Shank style	Cylindrical with square drive
Material sub-group	Stainless steels, sulphuratedStainless steels, austeniticStainless steels, martensitic
Cutting material	HSCo
Versatility (points system)	2 of 4 points
Size of square	7 mm
Thread type x nominal diameter	M12
Hole type	Clearance hole ≤ 3xD
Core hole diameter	10.2 mm
Twist angle	0°
Tolerance of screw taps	ISO 2 (6H)
Suitable for tensile strength up to	1000 N/mm²
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	2 of 4 points
