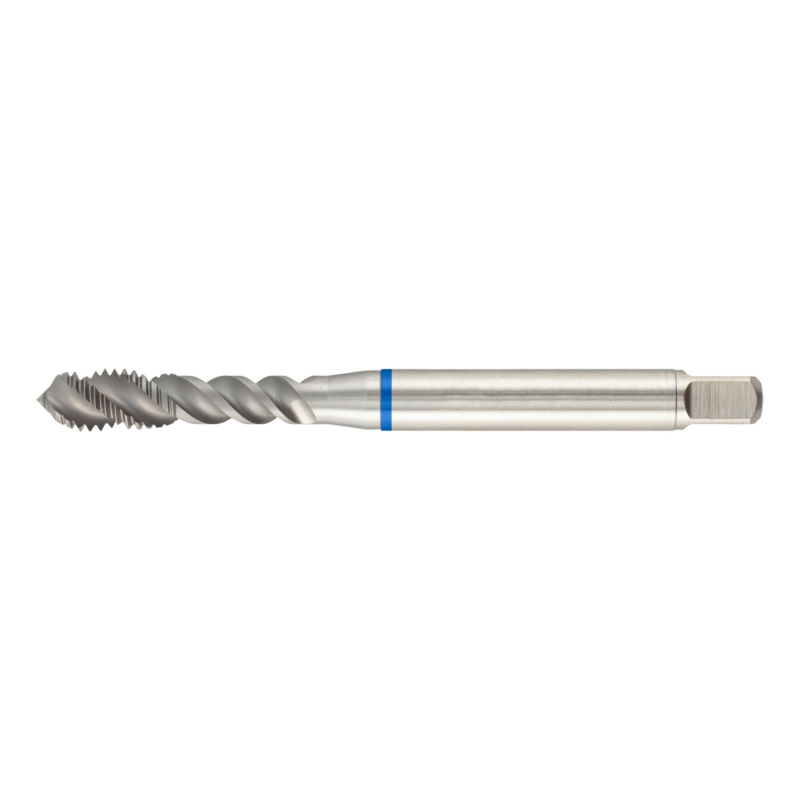

Vélatappi 10mm blár stál snúinn

Vörunúmer: 0653 801 000

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Bare
Form	C
DIN	371
Thread type	Metric thread
Pitch	1.5 mm
Thread length (metric thread)	18 mm
Shaft diameter	10 mm
Length	100 mm
Material to be processed	Steel
Suitable for machine type	Milling/drill centerPedestal drilling machine
Service life (points system)	2 of 4 points
Quality	ZEBRA-Premium
Shank style	Cylindrical with square drive
Material sub-group	General structural steelsNon-alloyed tempering steels
Cutting material	HSCo
Versatility (points system)	1 of 4 points
Size of square	8 mm
Thread type x nominal diameter	M10
Hole type	Blind hole ≤ 2.5xD
Core hole diameter	8.5 mm
Twist angle	40° (right)
Tolerance of screw taps	ISO 2 (6H)
Suitable for tensile strength up to	850 N/mm²
Trueness to gauge (points system)	4 of 4 points
Cutting behaviour (points system)	3 of 4 points
Chip formation (points system)	2 of 4 points
