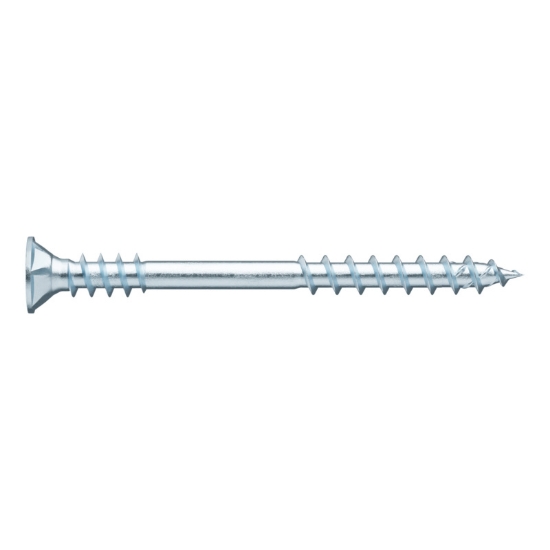

Tréskrúfa tvíg. ASSY®4 P 4x70 RW20

Vörunúmer: 0190 404 70

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Nominal diameter (d)	4 mm
Nominal diameter 2	4.7 mm
Length (l)	70 mm
Thread length (lg)	30 mm
Head type	Countersunk milling pocket head
Head details	Milling pockets
Head diameter (dh)	8 mm
Head height (k)	2.5 mm
Internal drive	RW20
Thread type	Wood screw thread
Thread design	Partial thread with underhead thread
Shaft length	4 mm
Thread form	Coarse thread
Core diameter	2.5 mm
Core diameter of head thread	2.5 mm
Shape of tip	Tip with hilltop milling cutter
Angle of the tip	34 Degree
Material	Hardened steel
Surface	Zinc plated
Colour	Silver
Min./max. screw-in angle	45-90 Degree
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply wood (BSP)HardwoodLVL3 layer board
Area of application	FurniturePress glueingBoard doublingBodyCasingInterior fittingTimber constructionDowel
Suitable machines	Wurth ABS 12-EWurth BS 12-A PowerWurth BS 14-A Combi
Screw requiring approval	No
RoHS-compliant	Yes
