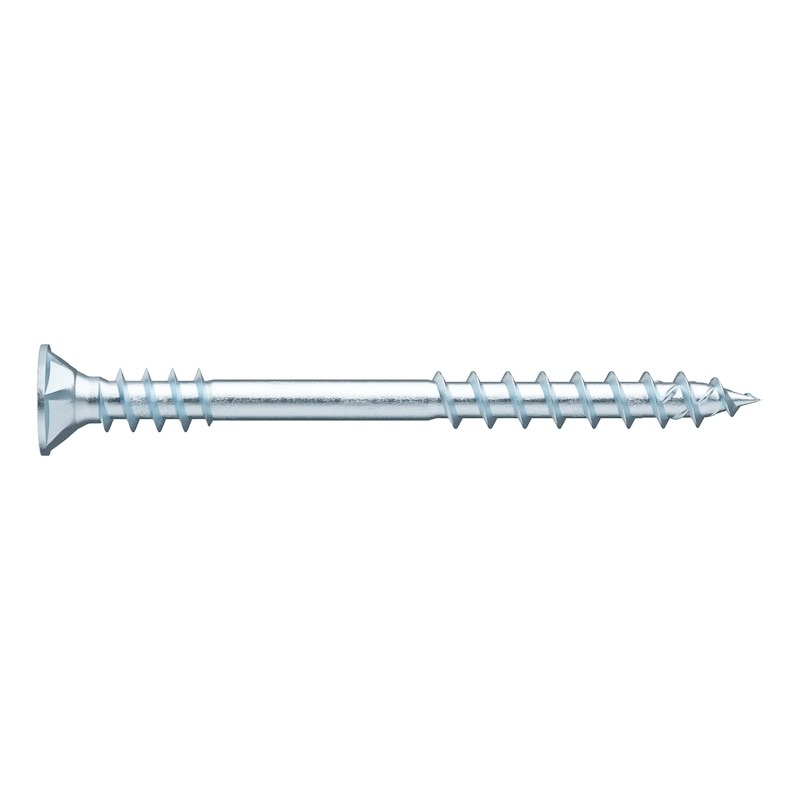

    Tréskrúfa tvíg. ASSY®4 P 4x30 RW20

    intelisale.product.documents
    Vörunúmer: 0190 404 30
    products.pickngo
    Fljótleg afhending
    Ókeypis sendingarkostnaður
    Tæknilegar upplýsingar
    Nafn á eigindi Eigindargildi
    Nominal diameter (d) 4 mm
    Nominal diameter 2 4.7 mm
    Length (l) 30 mm
    Thread length (lg) 15 mm
    Head type Countersunk milling pocket head
    Head details Milling pockets
    Head diameter (dh) 8 mm
    Head height (k) 2.5 mm
    Internal drive RW20
    Thread type Wood screw thread
    Thread design Partial thread with underhead thread
    Shaft length 4 mm
    Thread form Coarse thread
    Core diameter 2.5 mm
    Core diameter of head thread 2.5 mm
    Shape of tip Tip with hilltop milling cutter
    Angle of the tip 34 Degree
    Material Hardened steel
    Surface Zinc plated
    Colour Silver
    Min./max. screw-in angle 45-90 Degree
    Suitable for use in the following materials WoodDerived timber productSoftwoodBoard ply wood (BSP)HardwoodLVL3 layer board
    Area of application FurniturePress glueingBoard doublingBodyCasingInterior fittingTimber constructionDowel
    Suitable machines Wurth ABS 12-EWurth BS 12-A PowerWurth BS 14-A Combi
    Screw requiring approval No
    RoHS-compliant Yes
