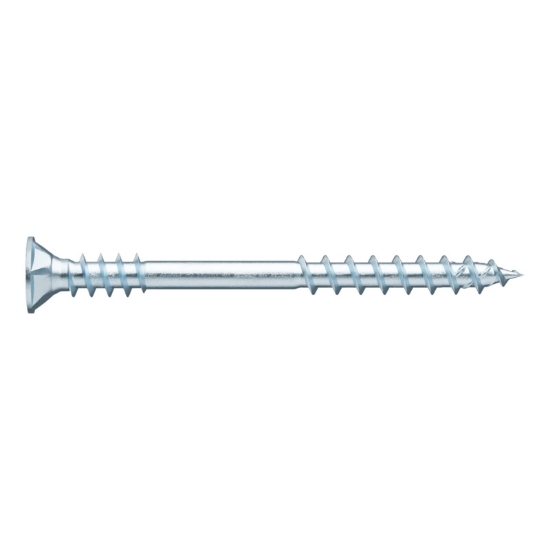

    Tréskrúfa tvíg. ASSY®4 P 3,5x30 RW20

    intelisale.product.documents
    Vörunúmer: 0190 403 530
    products.pickngo
    Fljótleg afhending
    Ókeypis sendingarkostnaður
    Tæknilegar upplýsingar
    Nafn á eigindi Eigindargildi
    Nominal diameter (d) 3.5 mm
    Length (l) 30 mm
    Material Hardened steel
    Colour Silver
    Surface Zinc plated
    Internal drive RW20
    Head type Countersunk milling pocket head
    RoHS-compliant Yes
    Thread type Wood screw thread
    Thread format Coarse thread
    Thread design Partial thread with underhead thread
    Head details Milling pockets
    Area of application FurniturePress glueingBoard doublingBodyCasingInterior fittingTimber constructionDowel
    Shape of tip Tip with hilltop milling cutter
    Core diameter 2.1 mm
    Angle of the tip 34 Degree
    Suitable for use in the following materials WoodDerived timber productSoftwoodBoard ply wood (BSP)HardwoodLVL3 layer board
    Approval ETA-11/0190
    Screw requiring approval Yes
    Min./max. screw-in angle 0 - 90 Degree
    Suitable machines Wurth ABS 12-EWurth BS 12-A PowerWurth BS 14-A Combi
    Thread length 15 mm
    Nominal diameter 2 4 mm
    Core diameter of head thread 2.5 mm
    Head height 2.3 mm
    Shaft length 4 mm
    Head diameter 7 mm
