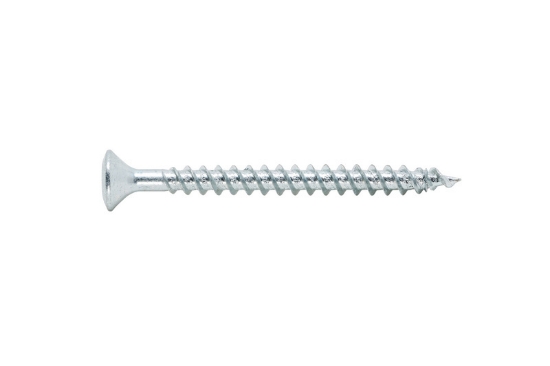

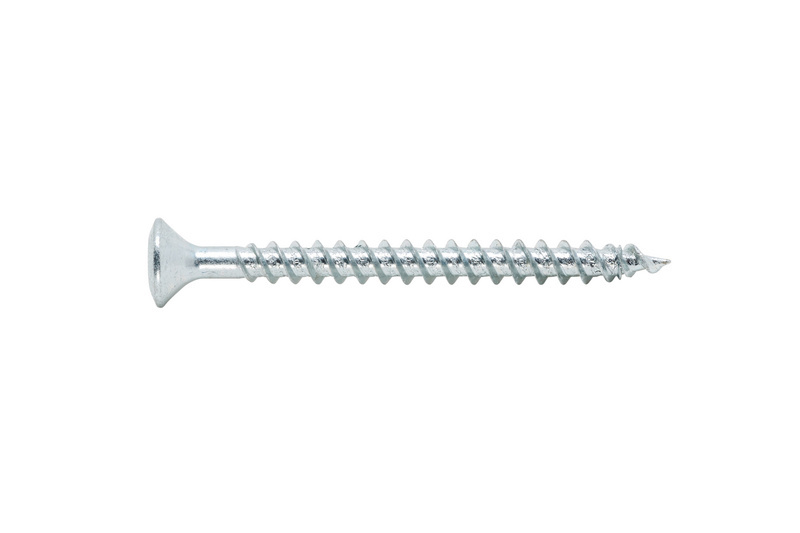

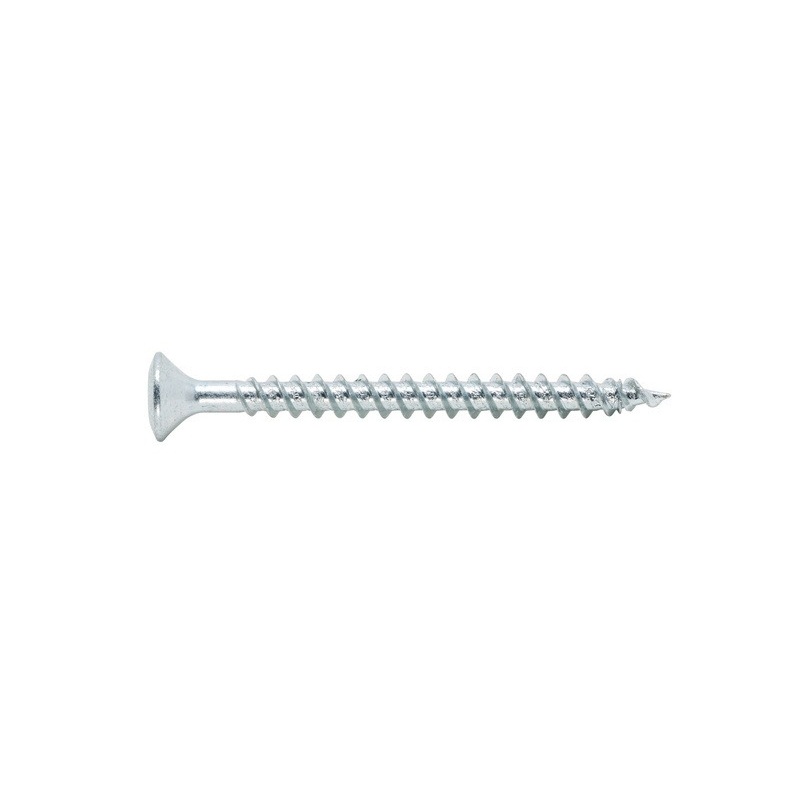

Tréskrúfa hálfk.uz 3,5x4,0

Vörunúmer: 0154 035 040

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	AW20
Head type	Countersunk oval head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Double thread
Thread design	Full thread
Area of application	UniversalFurnitureBodyFitting
Shape of tip	Tip with ring thread
Nominal diameter (d)	3.5 mm
Length (l)	40 mm
Head diameter (dh)	6.9 mm
Head height (k)	2.25 mm
Thread length (lg)	35 mm
Core diameter	2.1 mm
Angle of the tip	20 Degree
Max. screw-in angle	90 Degree
Min. screw-in angle	0 Degree
Product weight (per item)	1.700 g
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply woodHardwoodLVL
Approval	ETA-11/0190
Screw requiring approval	Yes
