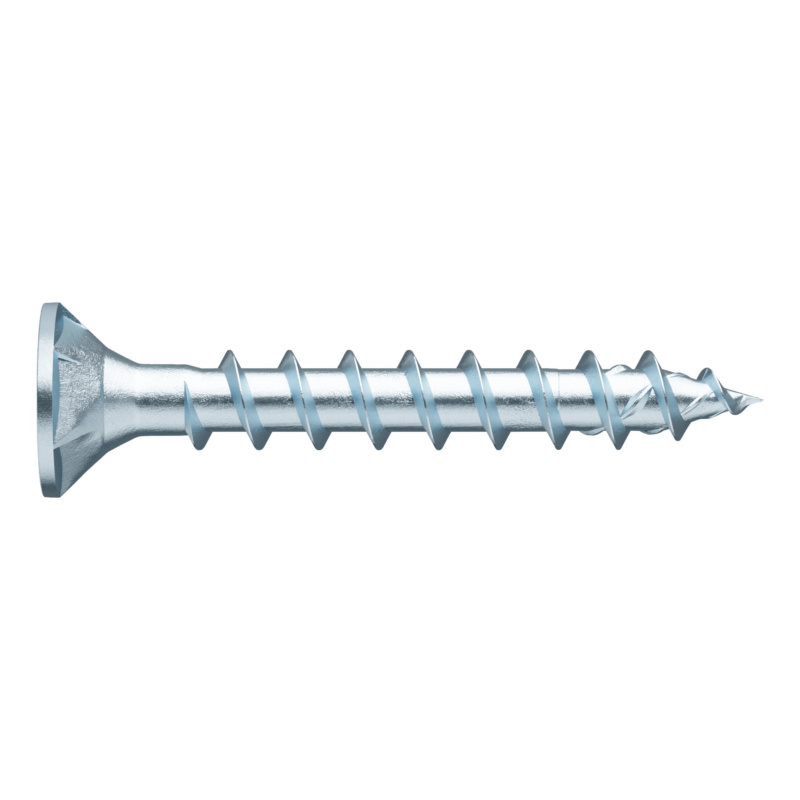

Tréskrúfa ASSY®4 upps 5x60 RW20

Vörunúmer: 0190 050 60

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Zinc plated
Internal drive	RW20
Head type	Countersunk milling pocket head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Full thread
Area of application	UniversalFurnitureBodyFittingInterior fittingRoof
Shape of tip	Tip with hilltop milling cutter
Nominal diameter (d)	5 mm
Length (l)	60 mm
Head diameter (dh)	9.6 mm
Head height (k)	3.2 mm
Thread length (lg)	52 mm
Core diameter	3.2 mm
Angle of the tip	34 Degree
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply woodHardwoodLVL
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
