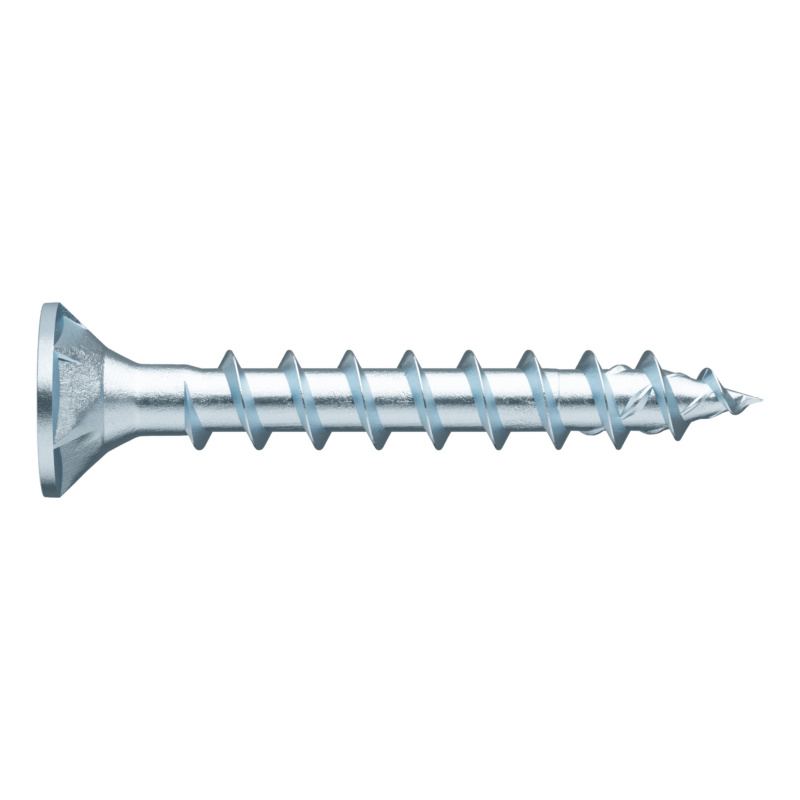

Tréskrúfa ASSY®4 upps 5x25 RW20

Vörunúmer: 0190 050 25

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	RW20
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Full thread
Head details	Milling pockets
Area of application	RoofElement constructionTimber constructionTimber panel constructionInterior fittingStructural woodworkFurnitureUniversal
Shape of tip	Tip with counter thread
Nominal diameter (d)	5 mm
Length (l)	25 mm
Head diameter (dh)	9.6 mm
Head height (k)	3.1 mm
Thread length (lg)	20 mm
Core diameter	3.2 mm
Angle of the tip	28 Degree
Suitable for use in the following materials	Board ply woodWoodDerived timber productHardwoodLVLSoftwood
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	45-90 Degree
