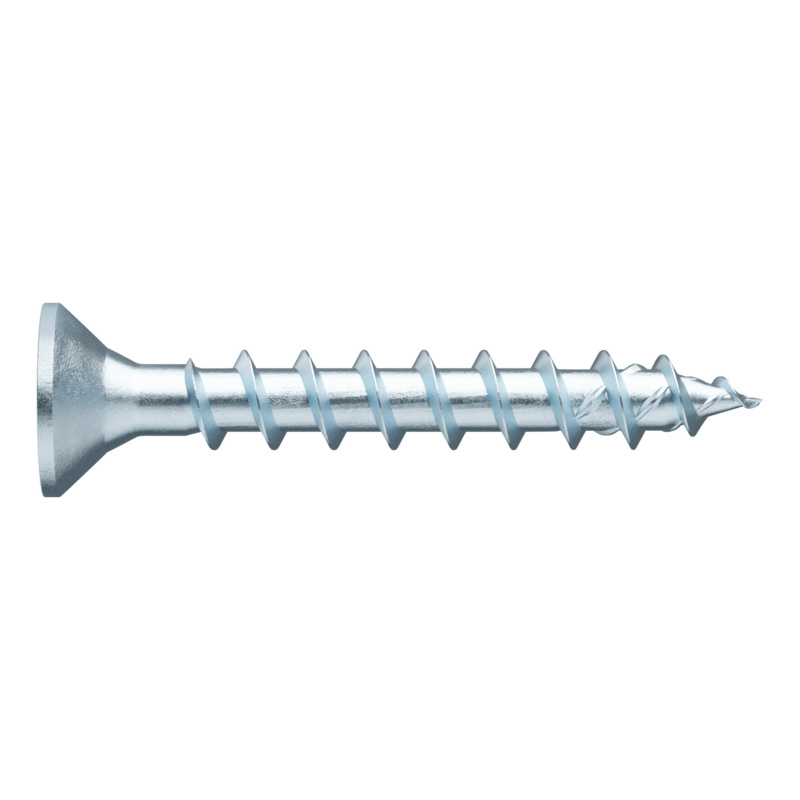

Tréskrúfa ASSY®4 upps 3x35 RW10

Vörunúmer: 0190 030 35

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	RW10
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Double thread
Thread design	Full thread
Area of application	UniversalFurnitureBodyFitting
Shape of tip	Tip with ring thread
Nominal diameter (d)	3 mm
Length (l)	35 mm
Head diameter (dh)	5.9 mm
Head height (k)	2.05 mm
Thread length (lg)	30 mm
Core diameter	1.95 mm
Angle of the tip	20 Degree
Product weight (per item)	1.470 g
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply woodHardwoodLVL
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
