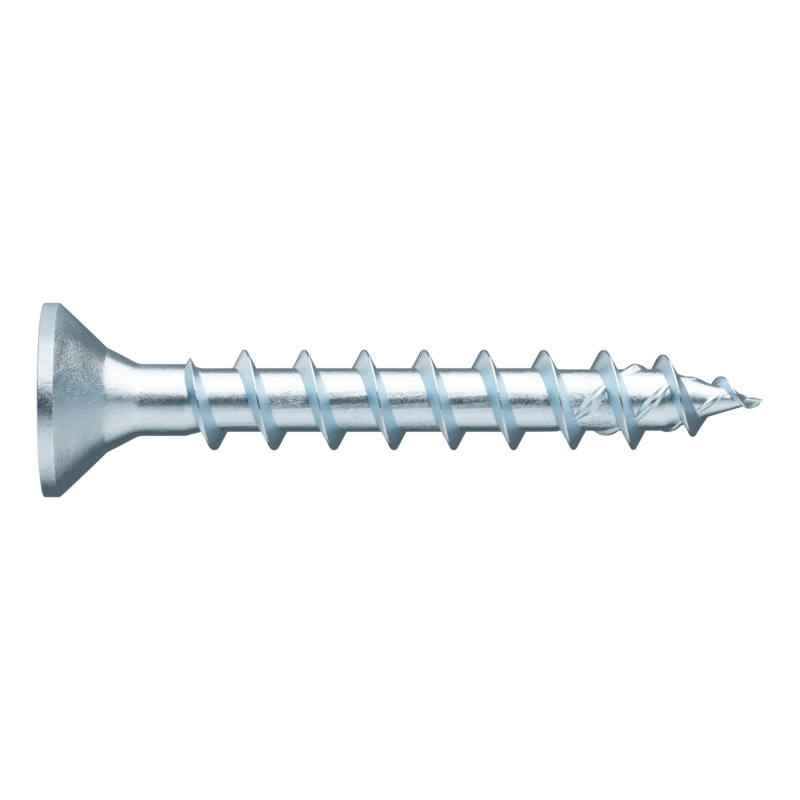

Tréskrúfa ASSY®4 upps 3,5x45 RW20

Vörunúmer: 0190 035 45

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Zinc plated
Internal drive	RW20
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Full thread
Area of application	UniversalFurnitureBodyFitting
Shape of tip	Tip with hilltop milling cutter
Nominal diameter (d)	3.5 mm
Length (l)	45 mm
Head diameter (dh)	7 mm
Head height (k)	2.3 mm
Thread length (lg)	40 mm
Core diameter	2.1mm
Angle of the tip	28 Degree
Product weight (per item)	1.918 g
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply woodHardwoodLVL
Min./max. screw-in angle	45-90 Degree
