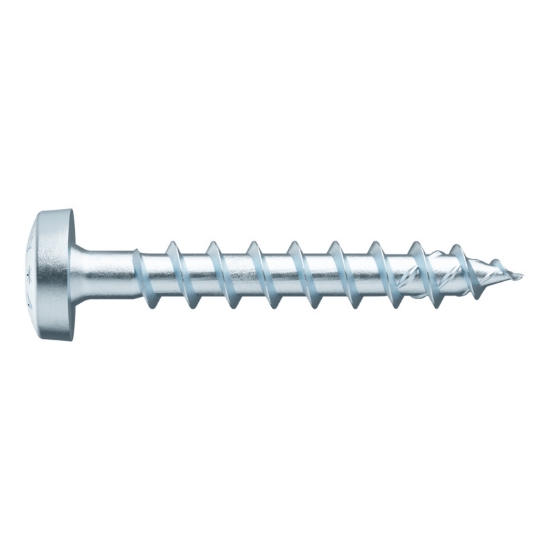

Tréskrúfa ASSY®4 panhead 5x25 RW20

Vörunúmer: 0153 750 025

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	RW20
Head type	Pan head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Single thread
Thread design	Full thread
Area of application	UniversalStructural woodworkElement constructionMetal plate, woodRoofer
Shape of tip	Tip with ring thread
Nominal diameter (d)	5 mm
Length (l)	25 mm
Head diameter (dh)	10 mm
Head height (k)	3.6 mm
Thread length (lg)	22 mm
Core diameter	3.15 mm
Angle of the tip	20 Degree
Max. screw-in angle	90 Degree
Min. screw-in angle	0 Degree
Product weight (per item)	3.314 g
Suitable for use in the following materials	Board ply woodWoodDerived timber productHardwoodLVLSoftwood
Approval	ETA-11/0190
