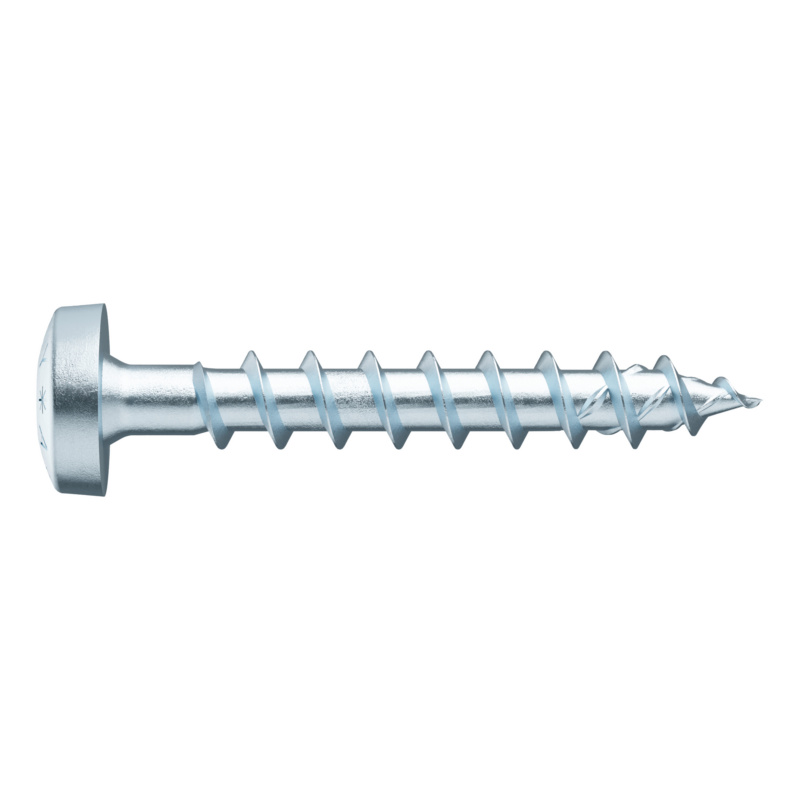

Tréskrúfa ASSY®4 panhead 3x30 RW10

Vörunúmer: 0153 730 030

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	RW10
Head type	Pan head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Single thread
Thread design	Full thread
Area of application	UniversalFurnitureMetal plate, woodFitting
Shape of tip	Tip with ring thread
Nominal diameter (d)	3 mm
Length (l)	30 mm
Head diameter (dh)	5.8 mm
Head height (k)	2.2 mm
Thread length (lg)	27.5 mm
Core diameter	1.95 mm
Angle of the tip	20 Degree
Max. screw-in angle	90 Degree
Min. screw-in angle	0 Degree
Product weight (per item)	1.171 g
Suitable for use in the following materials	Board ply woodWoodDerived timber productHardwoodLVLSoftwood
Approval	ETA-11/0190
