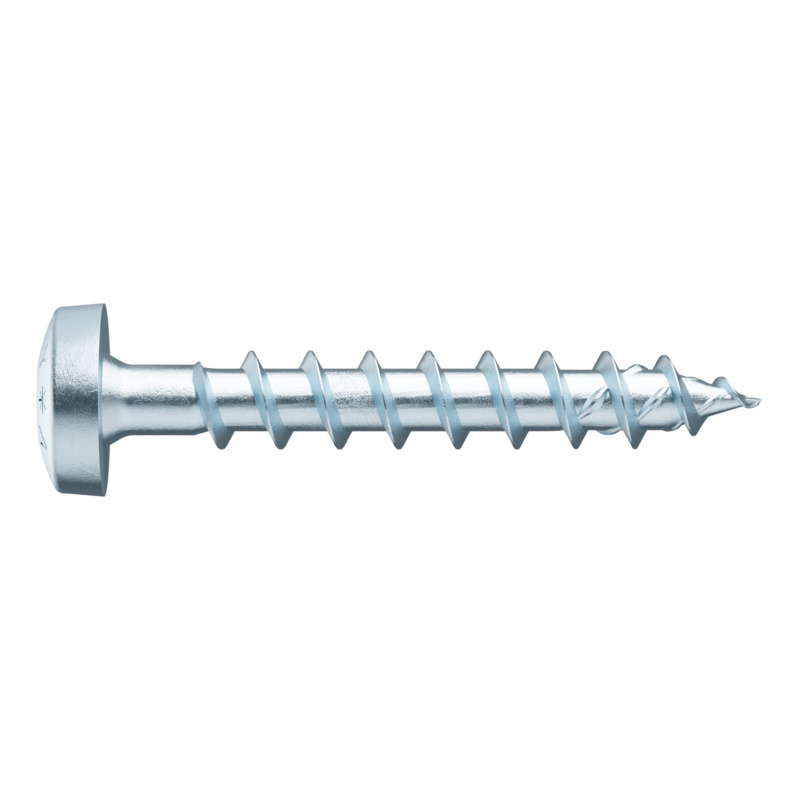

Tréskrúfa ASSY®4 panhead 3,5x35 RW20

Vörunúmer: 0153 735 035

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Colour	Silver
Surface	Zinc plated
Internal drive	RW20
Head type	Pan head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Full thread
Area of application	UniversalFurnitureMetal plate, woodFitting
Shape of tip	Tip with hilltop milling cutter
Nominal diameter (d)	3.5 mm
Length (l)	35 mm
Head diameter (dh)	5.8 mm
Head height (k)	2.2 mm
Thread length (lg)	14 mm
Core diameter	2 mm
Angle of the tip	34 Degree
Max. screw-in angle	90 Degree
Product weight (per item)	0.750 g
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoaed ply wood (BSP)HardwoodLVL
Approval	ETA-11/0190
