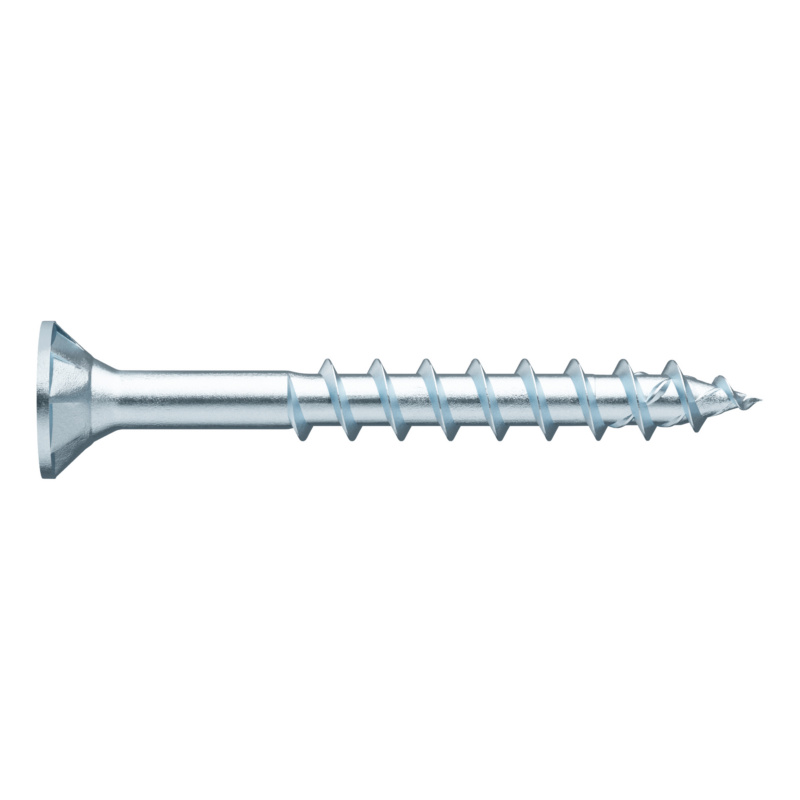

Tréskrúfa ASSY®4 m.legg 4x45 RW20

Vörunúmer: 0190 140 45

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	RW20
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Double thread
Thread design	Partial thread
Head details	Milling pockets
Area of application	UniversalFurnitureBodyFitting
Shape of tip	Tip with ring thread
Nominal diameter (d)	4 mm
Length (l)	45 mm
Head diameter (dh)	7.9 mm
Head height (k)	2.5 mm
Thread length (lg)	29 mm
Core diameter	2.5 mm
Angle of the tip	20 Degree
Suitable for use in the following materials	Board ply woodWoodDerived timber productHardwoodLVLSoftwood
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
