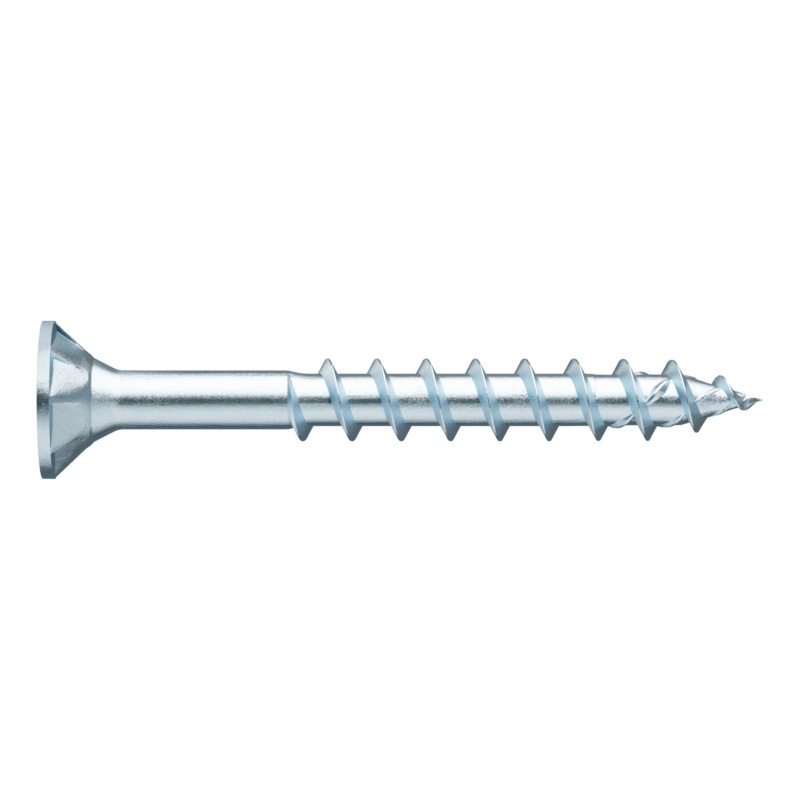

Tréskrúfa ASSY®4 m.legg 3x35 RW20

Vörunúmer: 0190 130 35

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Colour	Silver
Surface	Zinc plated
Internal drive	RW10
Head type	Countersunk milling pocket head
Washable at	22 mm
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Partial thread
Head details	Milling pockets
Area of application	UniversalFurnitureBodyFitting
Shape of tip	Tip with hilltop milling cutter
Nominal diameter (d)	3 mm
Length (l)	35 mm
Head diameter (dh)	5.9 mm
Head height (k)	1.9 mm
Core diameter	2 mm
Angle of the tip	28 Degree
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply wood (BSP)HardwoodLVL
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
Suitable machines	Wurth BS 14-A CombiWurth BS 12-A Power
