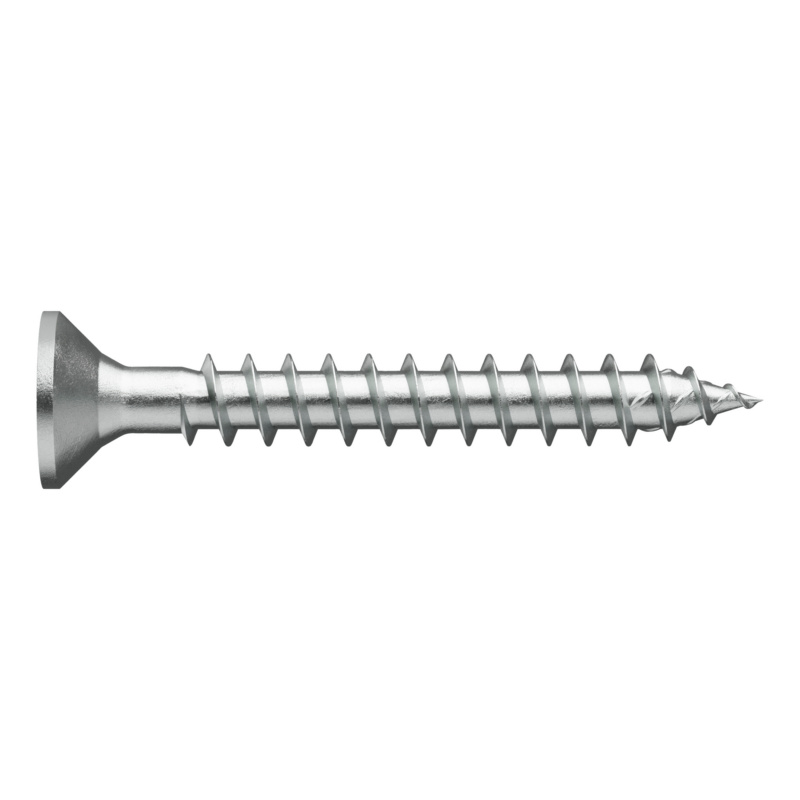

Tréskrúfa ASSY®4 A2 uppsn. 5x60 RW20

Vörunúmer: 0187 250 60

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
Surface	Bare
Internal drive	RW20
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Single thread
Thread design	Full thread
Area of application	FaçadesTerraceFenceStructural woodworkWet areasBalconyBoard walkPlay equipmentOutdoors
Shape of tip	Tip with ring thread
Nominal diameter (d)	5 mm
Length (l)	60 mm
Head diameter (dh)	9.6 mm
Head height (k)	3.1 mm
Thread length (lg)	52 mm
Core diameter	3.2 mm
Angle of the tip	30 Degree
Product weight (per item)	5 g
Suitable for use in the following materials	Board ply woodWoodDerived timber productHardwoodLVLSoftwood
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
