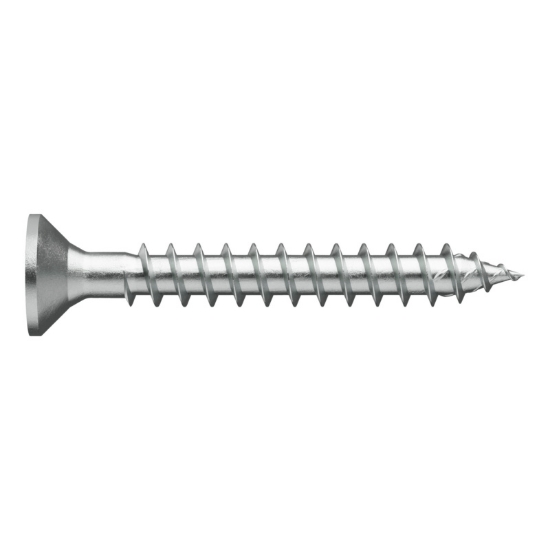

Tréskrúfa ASSY®4 A2 uppsn. 4x20 RW20

Vörunúmer: 0187 240 20

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
Surface	Plain
Internal drive	RW20
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Single thread
Thread design	Full thread
Shape of tip	Tip with hilltop milling cutter
Nominal diameter (d)	4 mm
Length (l)	20 mm
Head diameter (dh)	8 mm
Head height (k)	2.5 mm
Thread length (lg)	16 mm
Core diameter	2.5 mm
Angle of the tip	28 Degree
Product weight (per item)	1.295 g
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply wood (BSP)HardwoodLVL
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
Suitable machines	Würth BS 12-A Power
