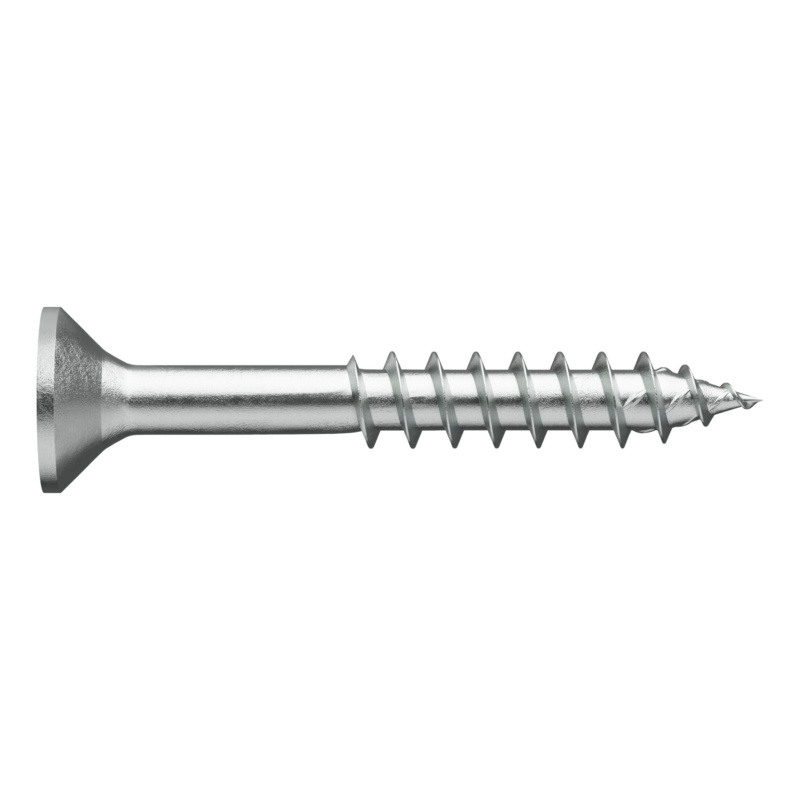

Tréskrúfa ASSY®4 A2 m.legg 4,5x70 RW20

Vörunúmer: 0187 445 70

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
Surface	Plain
Internal drive	RW20
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Single thread
Thread design	Partial thread
Shape of tip	Tip with hilltop milling cutter
Nominal diameter (d)	4.5 mm
Length (l)	70 mm
Head diameter (dh)	8.9 mm
Head height (k)	2.8 mm
Thread length (lg)	43 mm
Core diameter	2.7 mm
Angle of the tip	28 Degree
Product weight (per item)	4.780 g
Suitable for use in the following materials	WoodDerived timber productSoftwoodBoard ply wood (BSP)HardwoodLVL
Approval	ETA-11/0190
Screw requiring approval	Yes
Min./max. screw-in angle	0-90 Degree
Suitable machines	Würth BS 14-A Combi
