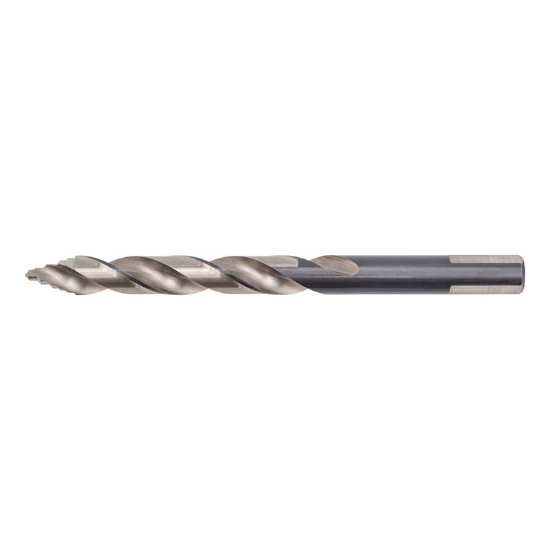

Smart step HSS bor 4.1mm

intelisale.product.documents
Vörunúmer: 0624 910 410
×
products.pickngo
products.pickngo.modaltitle ×
sjá allar tegundir
Fljótleg afhending
Ókeypis sendingarkostnaður
Tæknilegar upplýsingar
Nafn á eigindi Eigindargildi
Surface Multiple refined
Length (l1) 75 mm
Diameter (Ø) 4.1 mm
Material to be processed SteelCast ironNon-ferrous metalWoodHardwood
Suitable for machine type DrillCordless screwdriversPedestal drilling machine
Service life (points system) 3 of 4 points
Quality ZEBRA-Premium
Standard / drilling depth DIN 338/ 5xD
Shank style 3-face shank
Material sub-group General structural steelsNon alloyed tempering steelsCast ironDuctile ironMalleable cast ironMagnesium alloysCopper, low alloyedBrass, short/long chippingPlastics, duroplasticPlastics, thermoplastic
Cutting material HSS
Self-centring Yes
Suitable for drill (points system) 4 of 4 points
Suitable for cordless drills (points system) 4 of 4 points
Suitable for upright drilling machine (points system) 4 of 4 points
Drilling speed (point system) 4 of 4 points
Versatility (points system) 3 of 4 points
Drilling behaviour (point system) 4 of 4 points
Chip flute length (l2) 43 mm
Bore hole quality (point system) 4 of 4 points
Suitable for tensile strength up to 1000 N/mm²
Type SMART STEP
Drill tip length (l3) 3.1 mm
