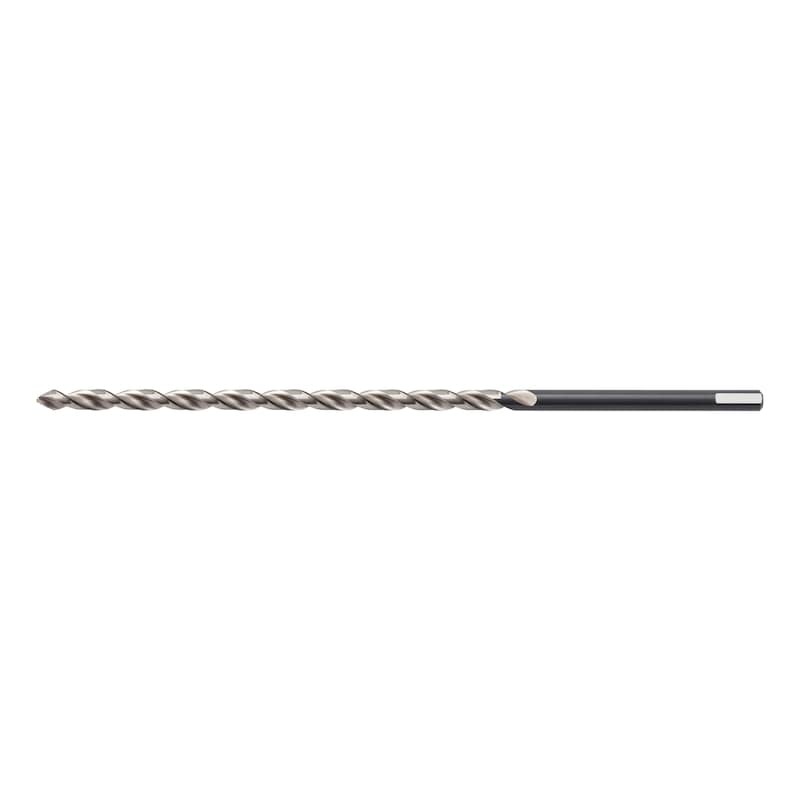

Smart step bor langur - 4,0mm - L 220mm

Vörunúmer: 0624 950 400

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Suitable for machine type	DrillCordless screwdriversPedestal drilling machine
Material to be processed	SteelCast ironNon-ferrous metalWoodHardwood
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 1869 / 25xD
Design	Overlong
Diameter (Ø)	4 mm
Length (l1)	220 mm
Chip flute length (l2)	150 mm
Drill tip length (l3)	2.81 mm
Shank diameter	4.0 mm
Shank style	3-face shank
Surface	Multiple refined
Cutting material	HSS
Service life (points system)	3 of 4 points
Drilling speed (point system)	4 of 4 points
Bore hole quality (point system) ( )	4 of 4 points
Versatility (points system)	3 of 4 points
Drilling behaviour (point system)	4 of 4 points
Suitable for drill (points system)	4 of 4 points
Suitable for cordless drills (points system)	4 of 4 points
Suitable for upright drilling machine (points system)	4 of 4 points
Self-centring	Yes
Suitable for tensile strength up to	1000 N/mm²
Material of sub-group	General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium, Aluminium alloys, Aluminium wrought alloys, Aluminium casting alloys (<10% silicon), Magnesium alloys, Copper, low-alloyed, Brass, short-chipping, Brass, long-chipping, Bronze, short-chipping, Bronze, long-chipping, Plastics, thermoset, Plastics, thermoplastic, Plastics, aramide-fibre reinforced, Plastics, glass/carbon-fibre-reinforced
