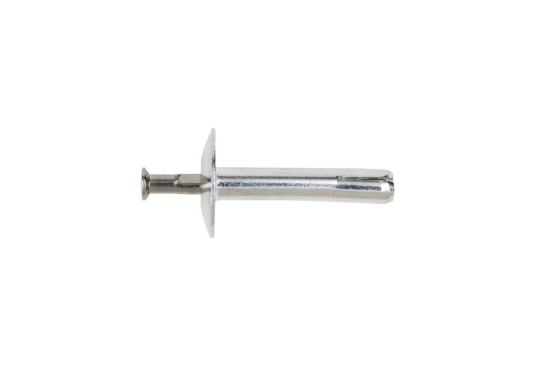

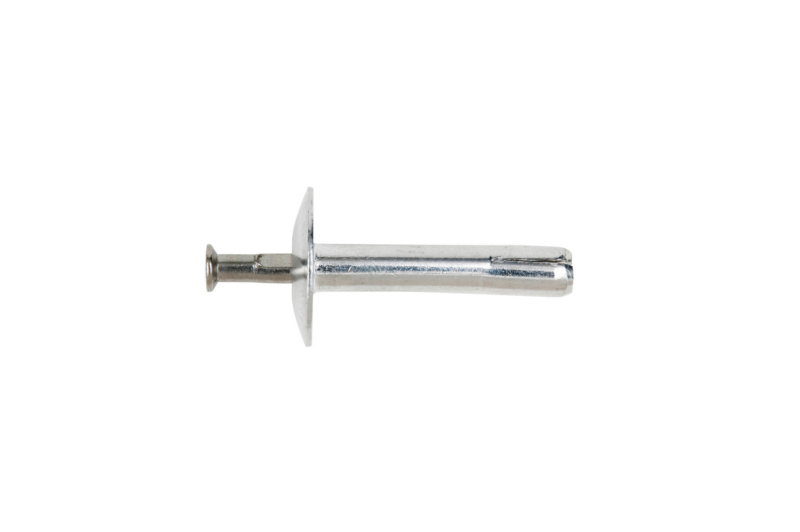

Slaghnoð ál/A2 4,8*26mm

Vörunúmer: 0945 48 26

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Nominal diameter	4.8 mm
Nominal drill-bit diameter (d 0)	5 mm
Centre-to-centre distance (a)	90 mm
Edge clearance (a r)	50 mm
Drill hole depth (t)	25 mm
Hole diameter in component (d Bau)	5 mm
Sleeve length (l)	25.4 mm
Embedding depth in solid brick (h s)	20 mm
Embedding depth in steel (h s)	4 mm
Max. attachment height in steel (d a)	19.7 - 22.2 mm
Max. height of the fixture	5.400 mm
Max. attachment height in solid brick (d a)	5.4 mm
