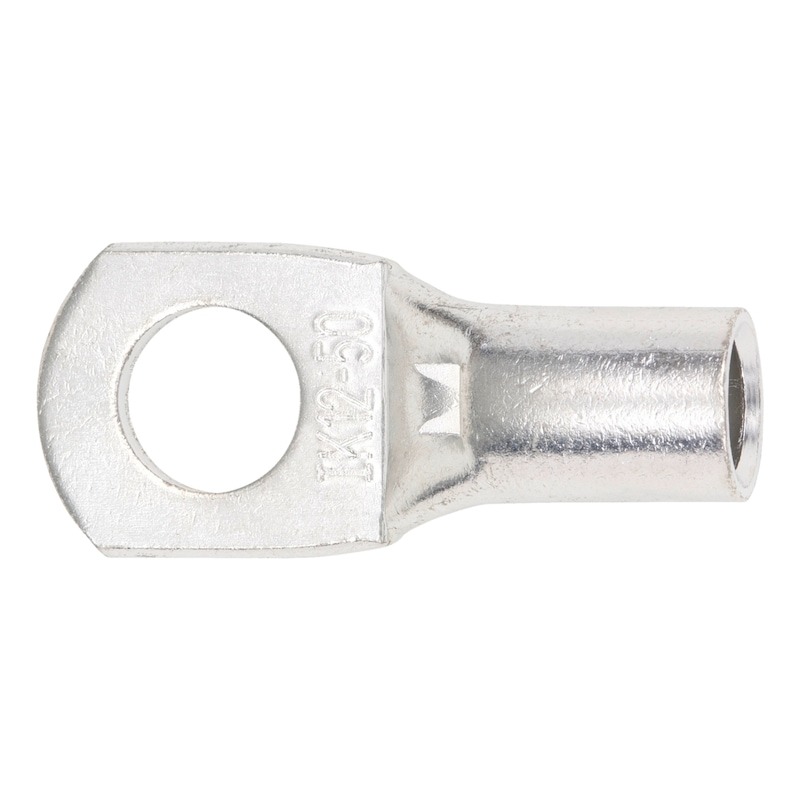

Rörkapalskór M12 50mm² (J2N)

Vörunúmer: 0967 250 12

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Electrolytic copper
Surface	Tin-plated
Diameter of hole (d2)	13.2 mm
Max. temperature resistance	125 °C
Width (B)	23 mm
Flange hole	M12
Wire cross section	50 mm²
Wire diameter (d1)	10 mm
Distance between sleeve end and centre of hole (e)	40 mm
Sleeve length (a)	19 mm
