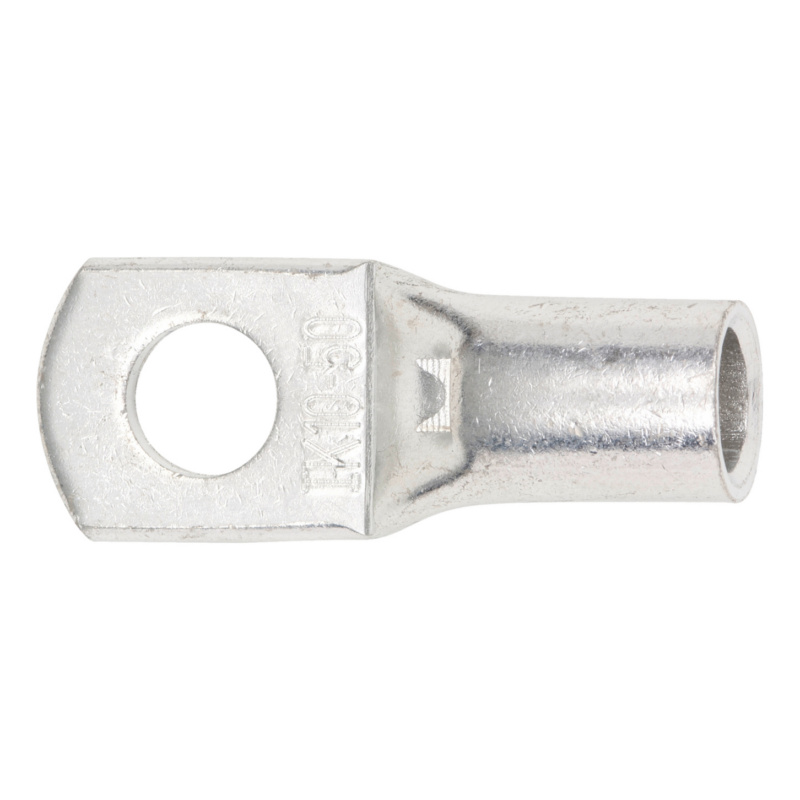

Rörkapalskór M10 70mm² (J2N)

Vörunúmer: 0967 270 10

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Electrolytic copper
Surface	Tin-plated
Diameter of hole (d2)	10.5 mm
Max. temperature resistance	125 °C
Width (B)	23 mm
Flange hole	M10
Wire cross section	70 mm²
Wire diameter (d1)	12 mm
Distance between sleeve end and centre of hole (e)	45 mm
Sleeve length (a)	21 mm
