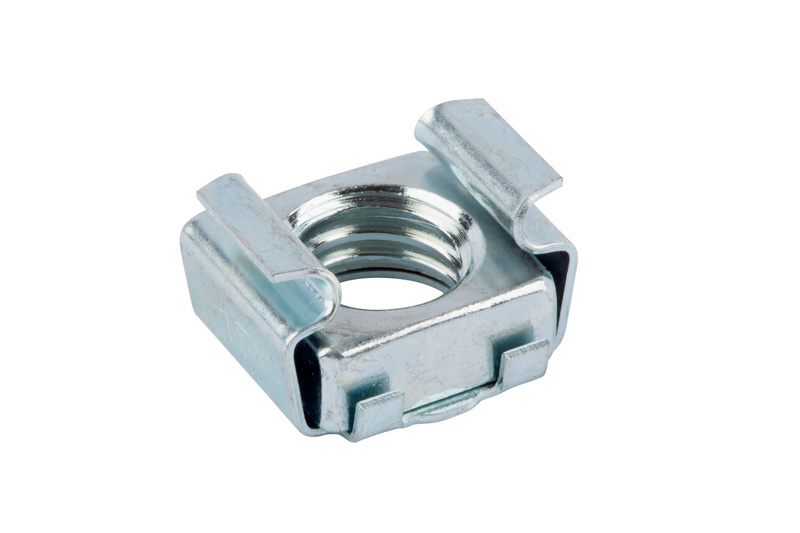

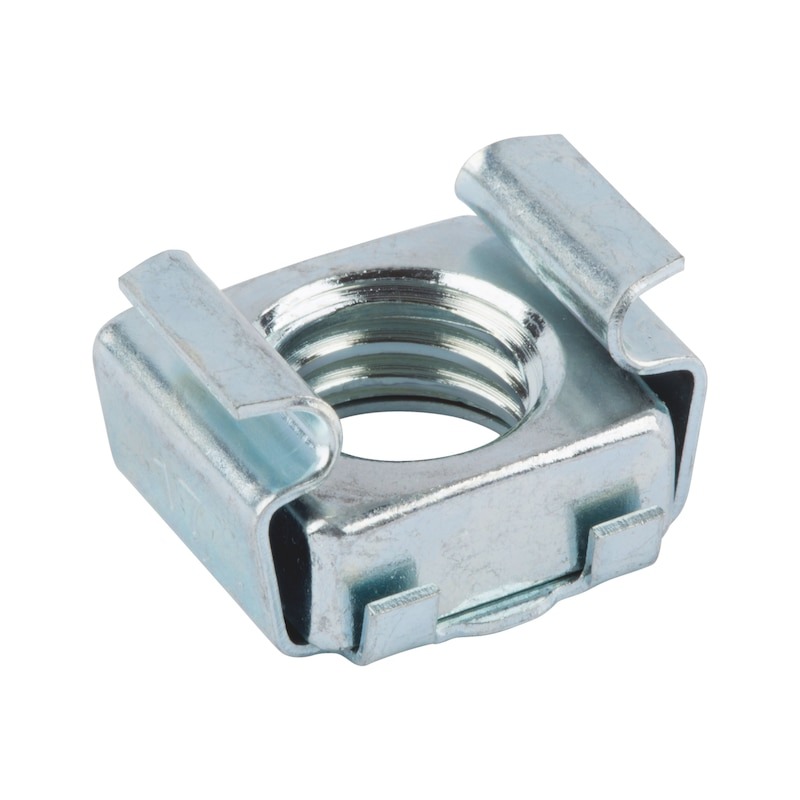

Ró í festingu, ferköntuð M6

Vörunúmer: 0381 6

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Thread type x nominal diameter (D)	M6
Version	Without assurance
Min./max. material thickness	0,7-1,6 mm
Max. material thickness	1.6 mm
Nominal diameter	6 mm
Height (h1)	8.5 mm
Max. width (b1)	13.5 mm
Max. length (a1)	14.2 mm
Punched-hole width x punched-hole length (n)	9,5 x 9,5 mm
Dimensions of square cage nut (L x B x H)	11 x 11 x 4.5 mm
Min./max. length (a)	13,6-14,2 mm
Min./max. internal length (b)	7,7-8,4 mm
Min. length	13.6 mm
Max. internal length	8.4 mm
Min. internal length	7.7 mm
Internal width (f)	9.3 mm
Punched-hole length	9.5 mm
Min. width	13 mm
