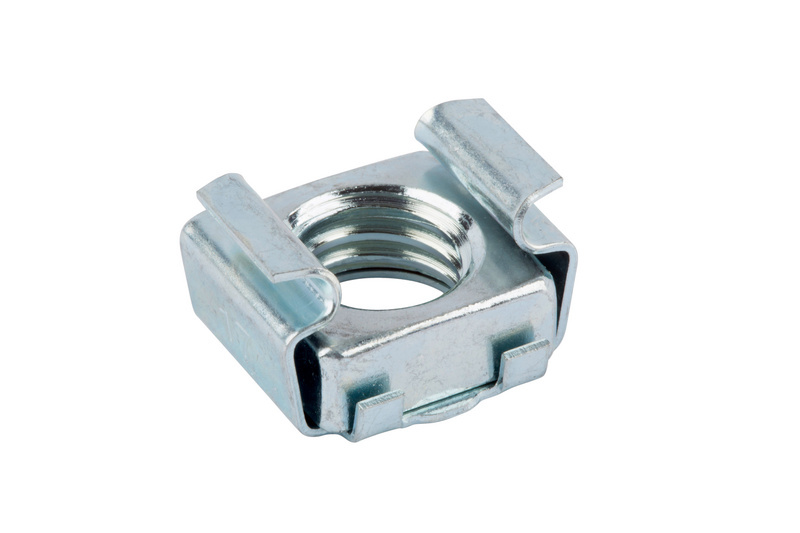

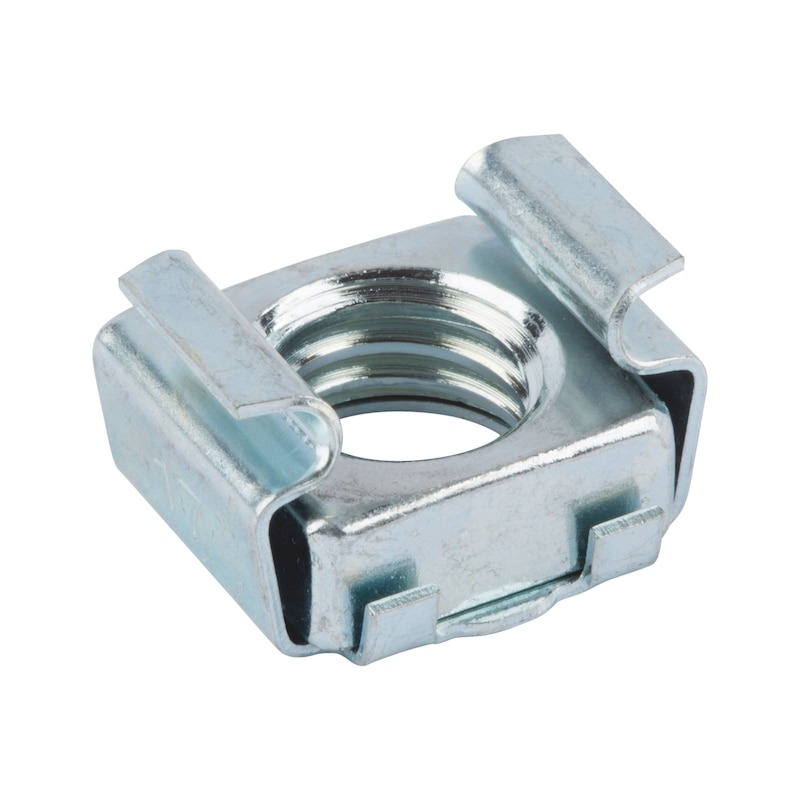

Ró í festingu, ferköntuð M10

Vörunúmer: 0381 10

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Thread type x nominal diameter (D)	M10
Version	Without assurance
Min./max. material thickness	1.0-1.7 mm
Max. material thickness	1.7 mm
Nominal diameter	10 mm
Height (h1)	10.5 mm
Max. width (b1)	16.9 mm
Max. length (a1)	18.4 mm
Punched-hole width x punched-hole length (n)	12.5 x 12.5 mm
Dimensions of square cage nut (L x B x H)	14 x 14 x 5.5 mm
Min./max. length (a)	17.5-18.4 mm
Min./max. internal length (b)	9.9-10.7 mm
Min. length	17.5 mm
Max. internal length	10.7 mm
Min. internal length	9.9 mm
Internal width (f)	11.5 mm
Punched-hole length	12.5 mm
Min. width	16.4 mm
