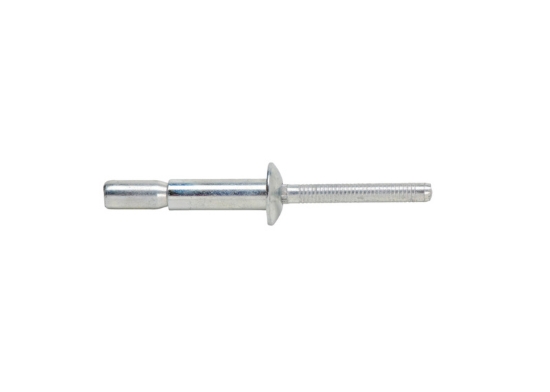

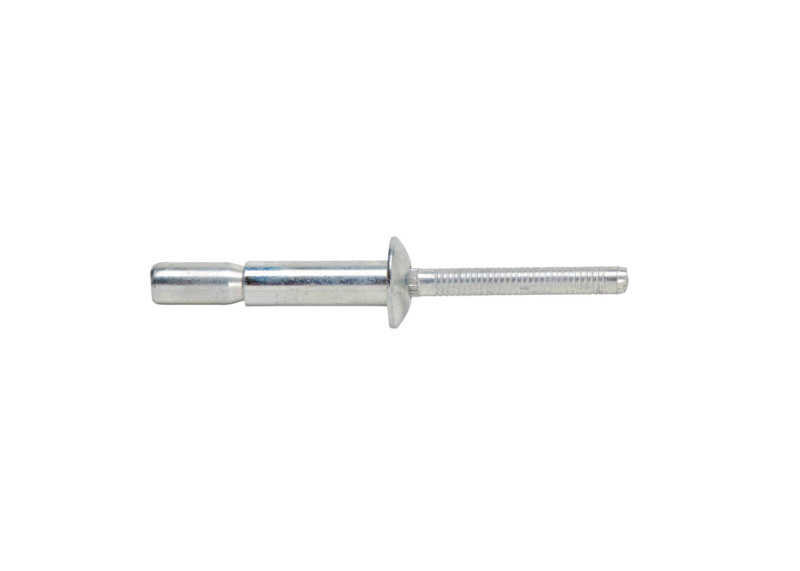

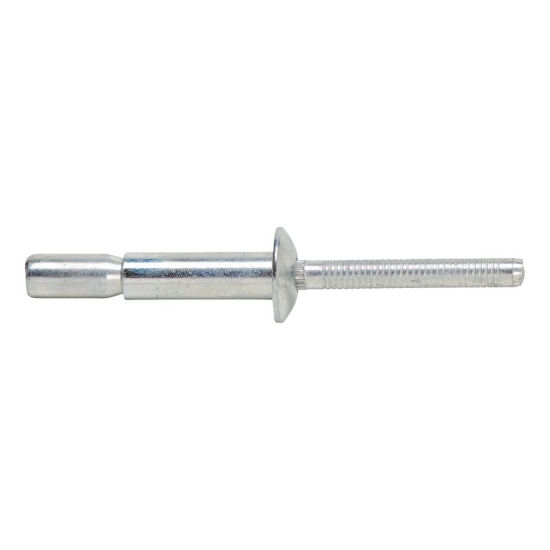

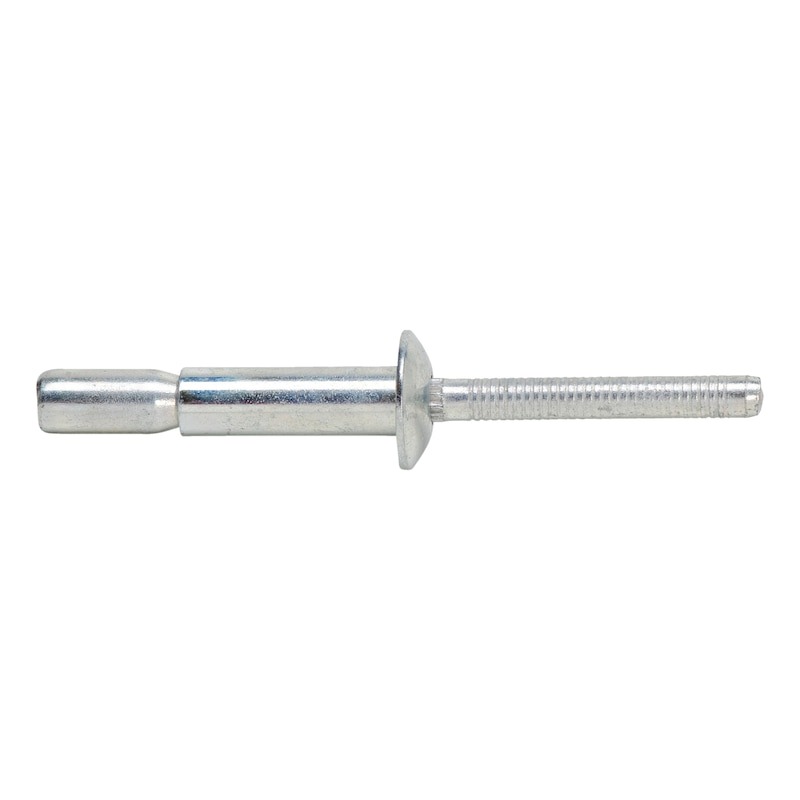

Monobolt hnoð 4,8x13,5 A2/A2

Vörunúmer: 0921 480 13

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Nominal diameter (d1)	4.8 mm
Length (l1)	13.5 mm
Head diameter (dk)	9.70 mm
Head height (k1)	1.80 mm
Head type	Flat round head
Min./max. drill hole diameter	4,90-5,10 mm
Min./max. grip range	1,5-11,0 mm
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain
Shear-fracture load	5800 N
Tensile fracture load	5000 N
Nominal diameter x length (Ø d x l)	4,8 x 13,5 mm
