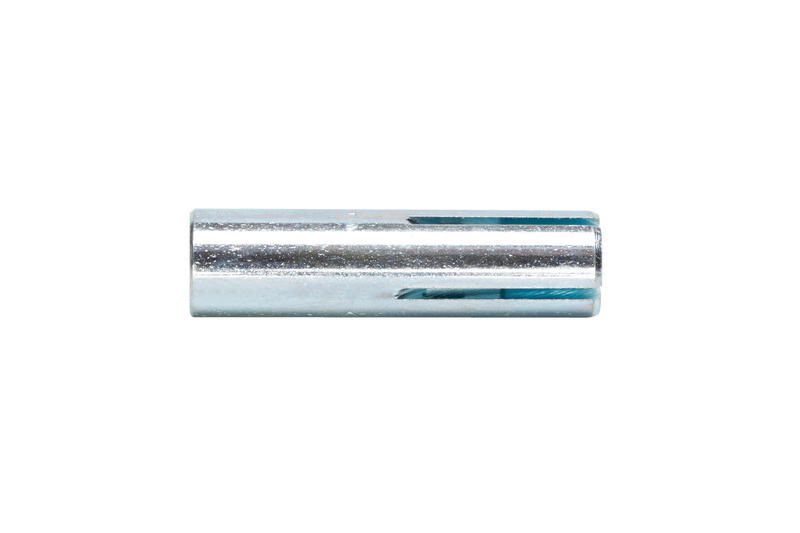

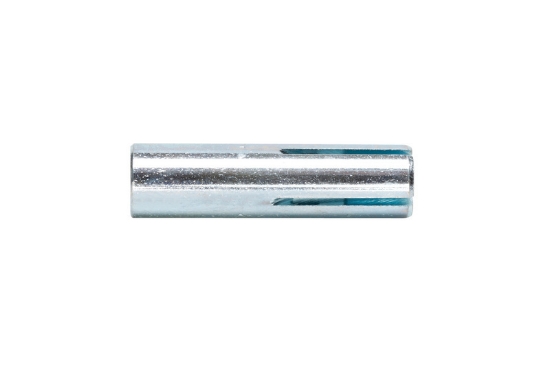

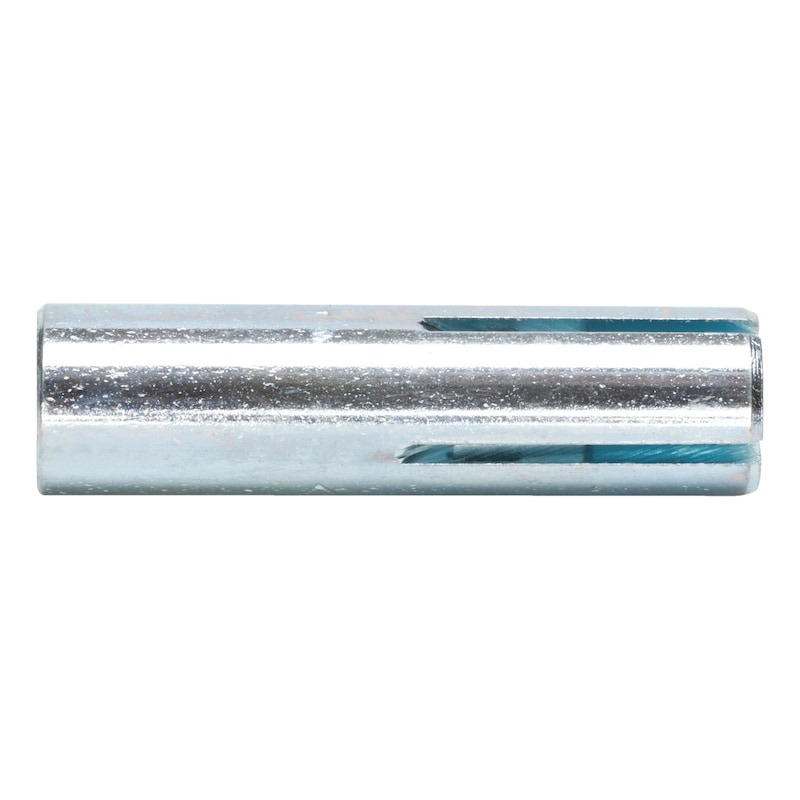

Múrhulsa slétt 12mm

Vörunúmer: 0904 010 12

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Approval	ETA-02/0044ETA-05/0120
Anchor diameter	12 mm
Nominal drill-bit diameter (d 0)	15 mm
Min./max. required screw-in depth	13-18 mm
Drill hole depth (h 0)	50 mm
Anchor length (L H)	50 mm
Effective anchoring depth (h ef)	50 mm
Torque during anchoring (T inst)	35 Nm
Through-hole in the component to be connected (d f)	14 mm
