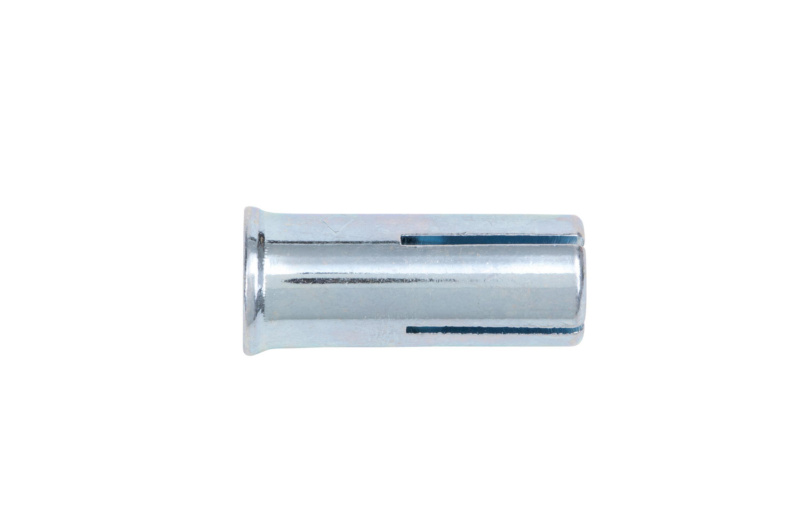

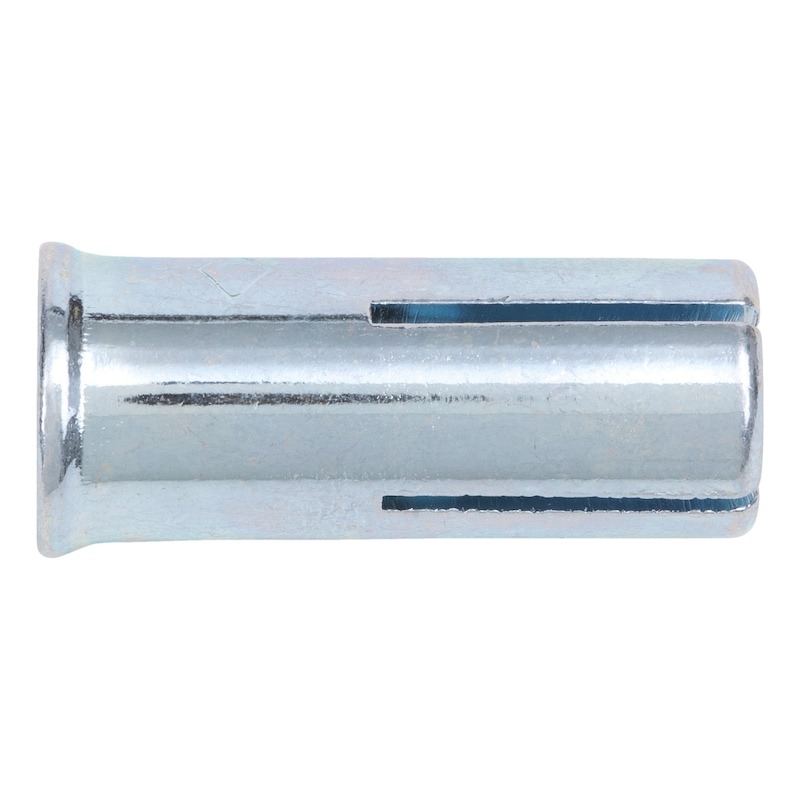

Múrhulsa M8x30 m.kraga

Vörunúmer: 0904 040 08

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Anchor diameter	8 mm
Nominal drill-bit diameter (d 0)	10 mm
Min./max. required screw-in depth	9-13 mm
Drill hole depth (h 0)	30 mm
Anchor length (L H)	30 mm
Effective anchoring depth (h ef)	30 mm
Torque during anchoring (T inst)	8 Nm
Through-hole in the component to be connected (d f)	9 mm
