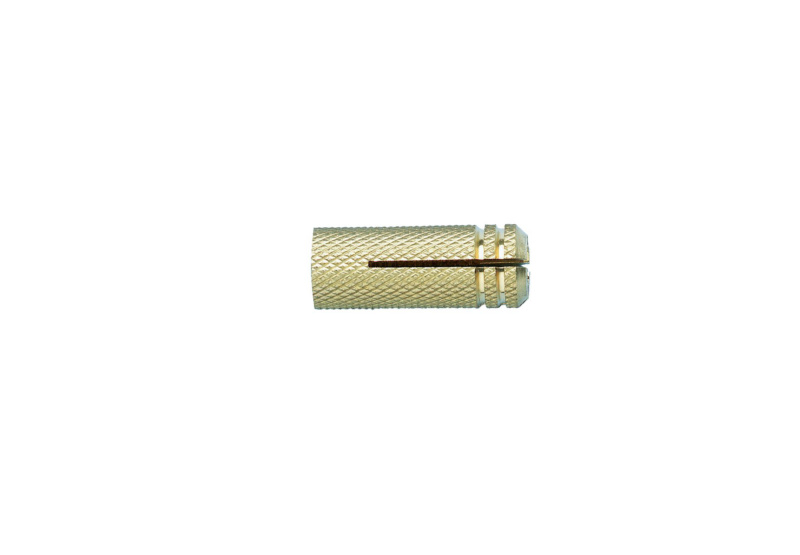

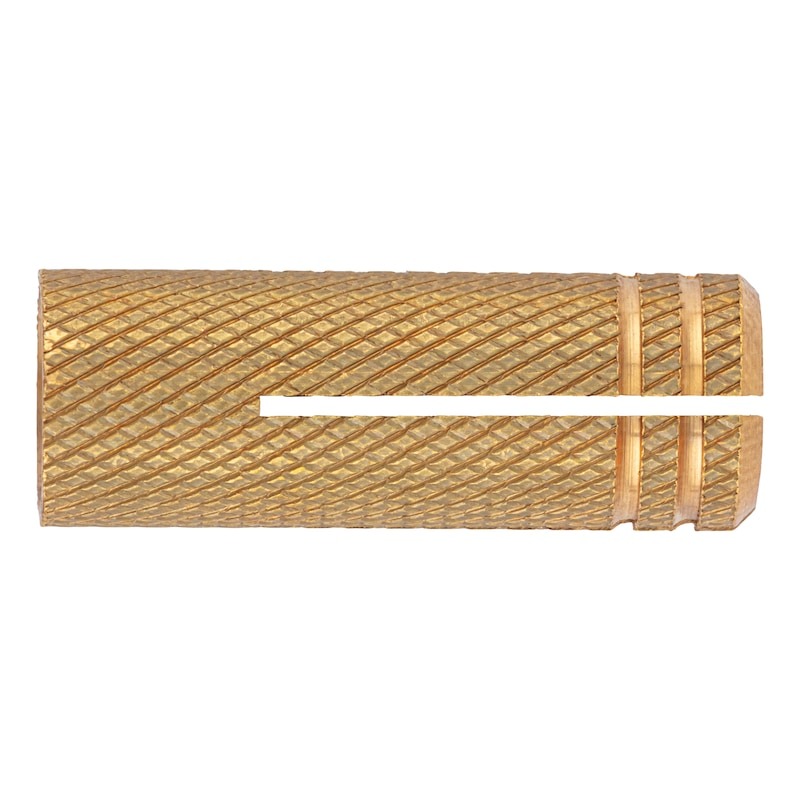

Múrhulsa, kopar M6

intelisale.product.documents
Vörunúmer: 0904 36
×
products.pickngo
products.pickngo.modaltitle ×
sjá allar tegundir
Fljótleg afhending
Ókeypis sendingarkostnaður
Tæknilegar upplýsingar
Nafn á eigindi Eigindargildi
Outer diameter 8 mm
Internal diameter 6 mm
Nominal drill-bit diameter (d 0) 8 mm
Embedding depth (h s) 25 mm
Centre-to-centre distance (a) 60 mm
Edge clearance (a r) 60 mm
Drill hole depth (t) 30 mm
Max. attachment height (d a) - condition Dependent on screw length
Anchor length (l) (l) 23 mm
Hole diameter in component (d Bau) 6.5 mm
Minimum component thickness (d) 60 mm
