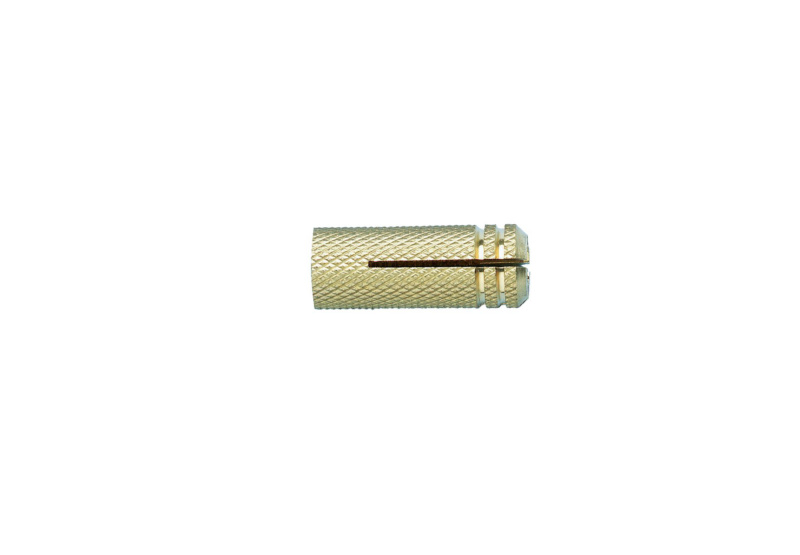

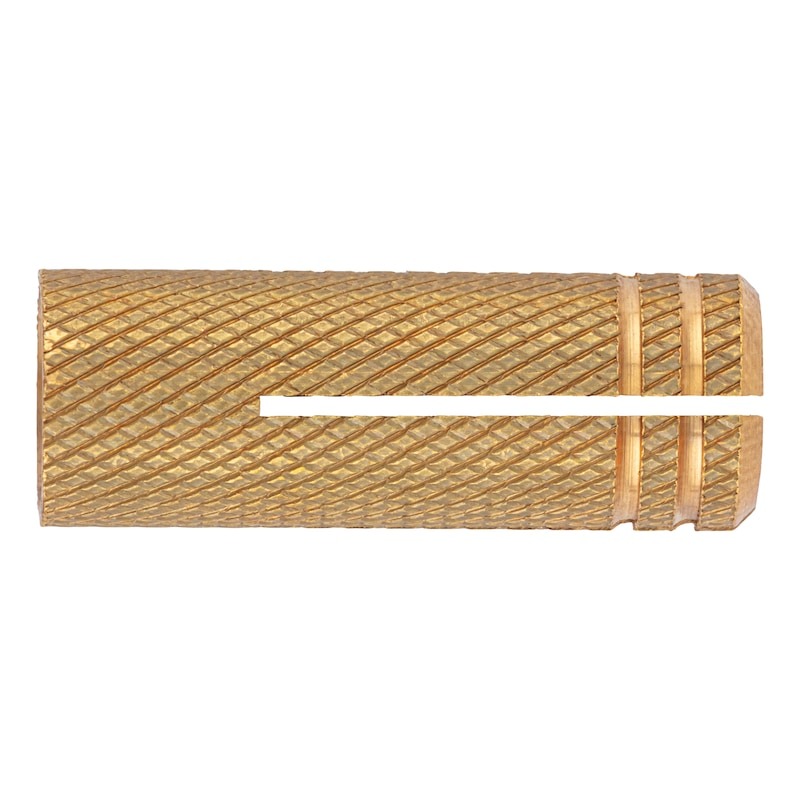

Múrhulsa, kopar M10

intelisale.product.documents
Vörunúmer: 0904 310
×
products.pickngo
products.pickngo.modaltitle ×
sjá allar tegundir
Fljótleg afhending
Ókeypis sendingarkostnaður
Tæknilegar upplýsingar
Nafn á eigindi Eigindargildi
Outer diameter 12 mm
Internal diameter 10 mm
Nominal drill-bit diameter (d 0) 12 mm
Embedding depth (h s) 35 mm
Centre-to-centre distance (a) 80 mm
Edge clearance (a r) 80 mm
Drill hole depth (t) 40 mm
Max. attachment height (d a) - condition Dependent on screw length
Anchor length (l) (l) 34 mm
Hole diameter in component (d Bau) 10.5 mm
Minimum component thickness (d) 80 mm
