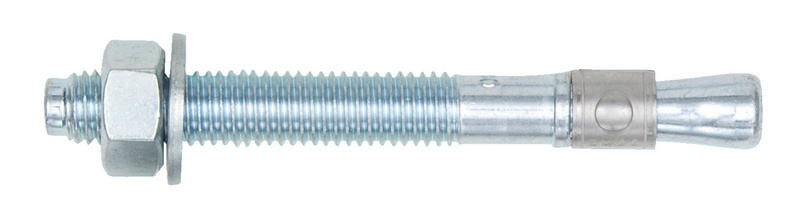

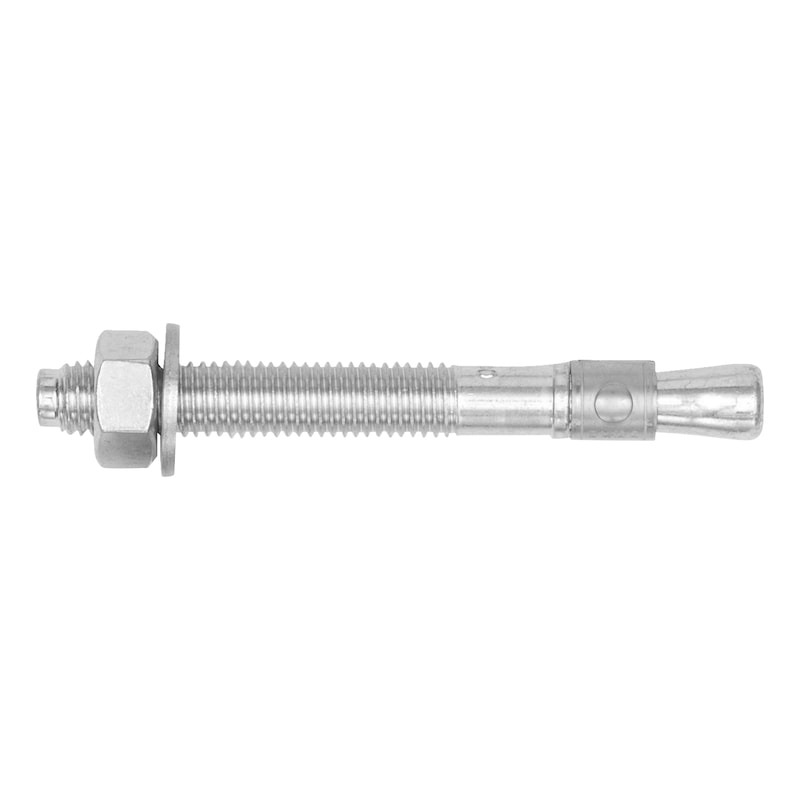

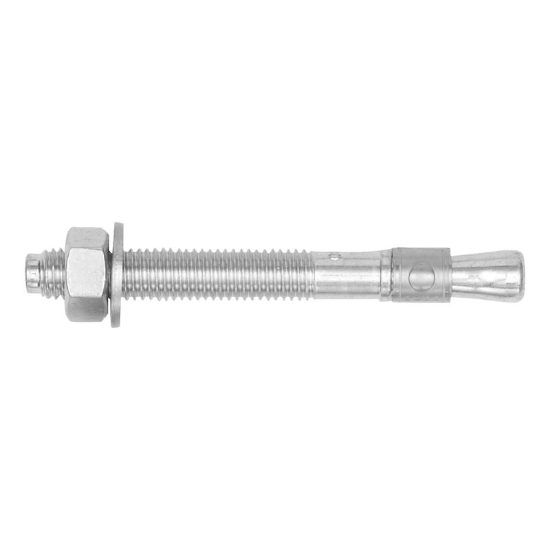

Múrbolti M6 25-35/82mm

Vörunúmer: 5932 006 082

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Width across flats	10 mm
Approval	ETA-02/0001
Anchor length (l)	82 mm
Nominal drill-bit diameter (d 0)	6 mm
Torque during anchoring (T inst)	8 Nm
Through-hole in the component to be connected (d f)	7 mm
Metric anchor diameter	M6
Attachment height (t fix)/effective anchoring depth (he ef)/drill hole depth (h 1)	25 / 40 / 55 mm
Attachment height (t fix 2)/effective anchoring depth (h ef 2)/drill hole depth (h 1, 2)	35 / 30 / 45 mm
