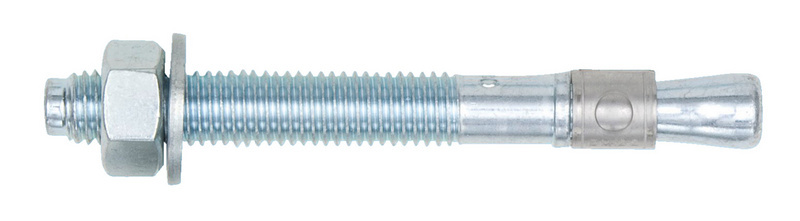

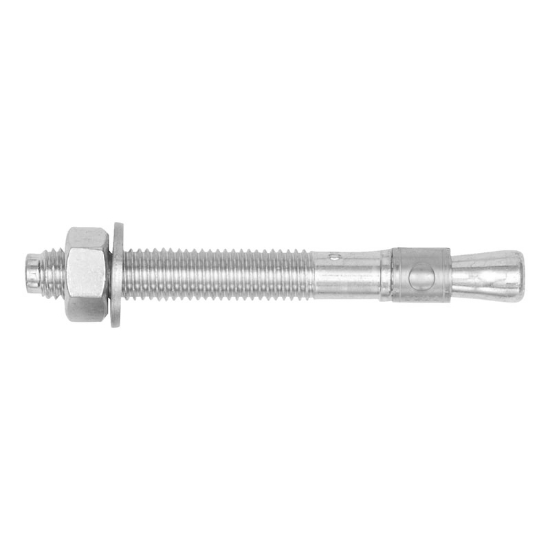

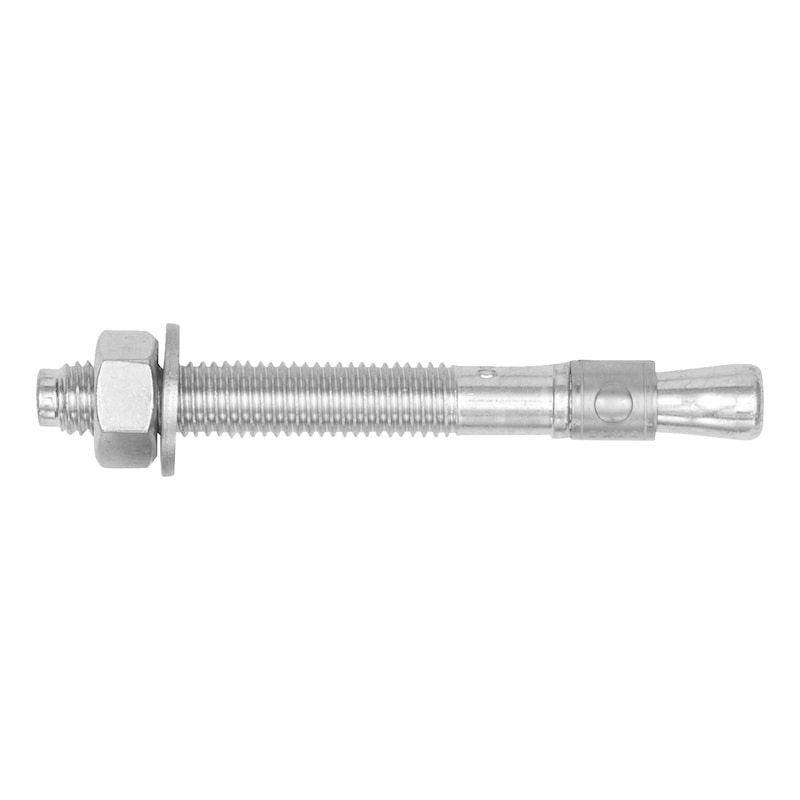

Múrbolti M20 5-27/150mm

Vörunúmer: 5932 020 150

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Width across flats	30 mm
Approval	ETA-02/0001
Anchor length (l)	150 mm
Nominal drill-bit diameter (d 0)	20 mm
Torque during anchoring (T inst)	200 Nm
Through-hole in the component to be connected (d f)	22 mm
Metric anchor diameter	M20
Attachment height (t fix)/effective anchoring depth (he ef)/drill hole depth (h 1)	5 / 100 / 130 mm
Attachment height (t fix 2)/effective anchoring depth (h ef 2)/drill hole depth (h 1, 2)	27 / 78 / 110 mm
