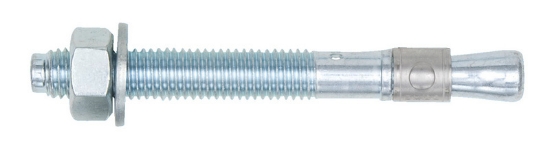

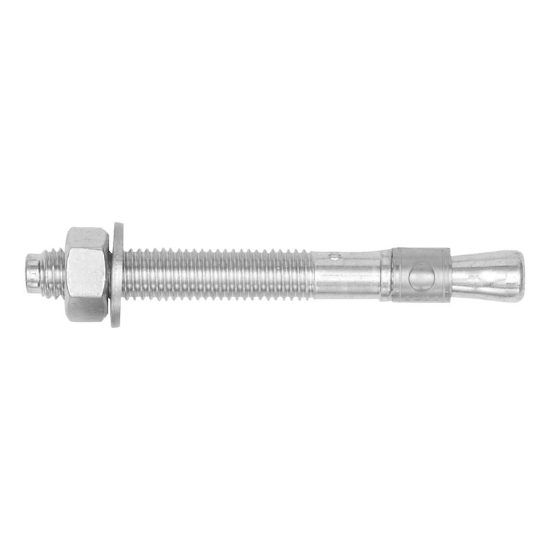

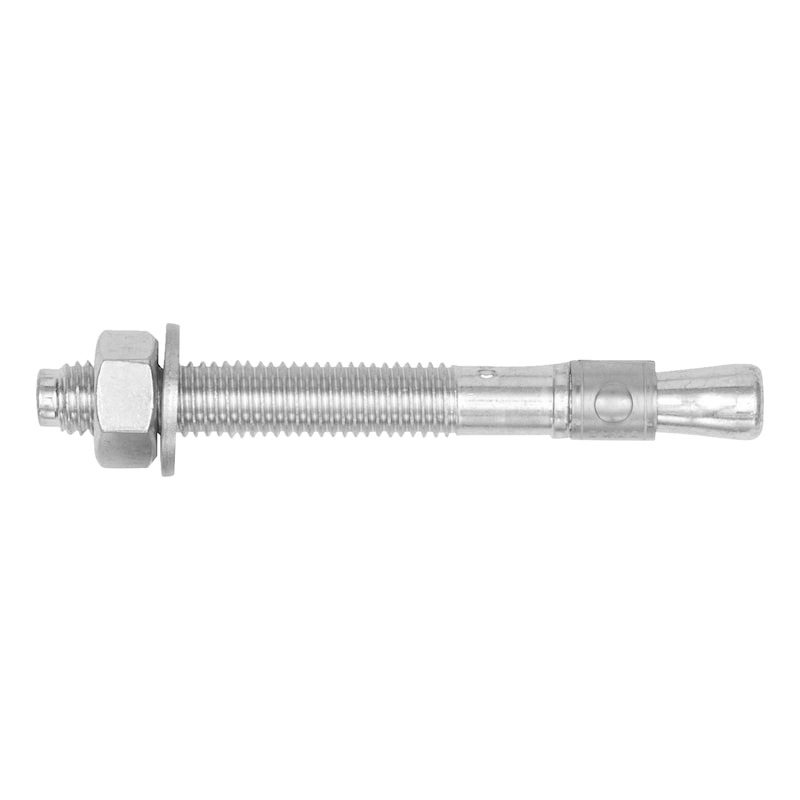

Múrbolti M12 85-100/180mm

Vörunúmer: 5932 012 180

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Width across flats	19 mm
Approval	ETA-02/0001
Anchor length (l)	180 mm
Nominal drill-bit diameter (d 0)	12 mm
Torque during anchoring (T inst)	50 Nm
Through-hole in the component to be connected (d f)	14 mm
Metric anchor diameter	M12
Attachment height (t fix)/effective anchoring depth (he ef)/drill hole depth (h 1)	85 / 65 / 90 mm
Attachment height (t fix 2)/effective anchoring depth (h ef 2)/drill hole depth (h 1, 2)	100 / 50 / 75 mm
