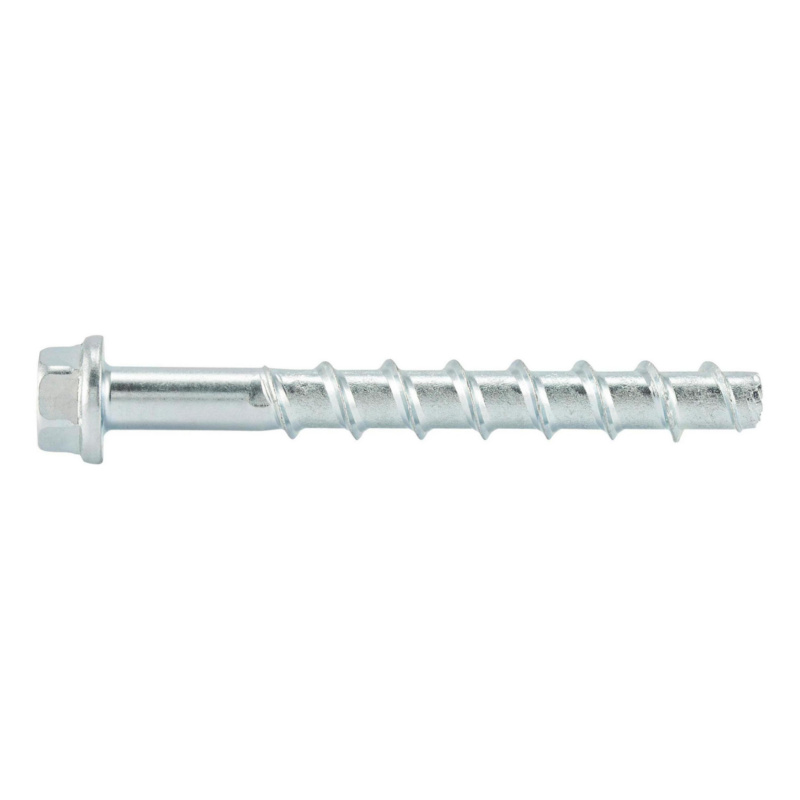

Múr-skrúfbolti W-BS/S kjarnast. 6mm L40

intelisale.product.documents
Vörunúmer: 5929 126 005
×
products.pickngo
products.pickngo.modaltitle ×
sjá allar tegundir
Fljótleg afhending
Ókeypis sendingarkostnaður
Tæknilegar upplýsingar
Nafn á eigindi Eigindargildi
Material Steel
Surface Galvanised
External drive WS13
Washer diameter 15 mm
Thread diameter 7.5 mm
Anchor length (l) 40 mm
Nominal drill-bit diameter (d 0) 6 mm
Anchor size 6 mm
Attachment height (t fix 1) 5 mm
Drill hole depth (h 1.1) 40 mm
Embedding depth (h nom1) 35 mm
Attachment height (t fix 2) 15 mm
Attachment height (t fix 3) 5 mm
Drill hole depth (h 1.2) 85 mm
Drill hole depth (h 1.3) 95 mm
Embedding depth (h nom2) 75 mm
Embedding depth (h nom3) 85 mm
