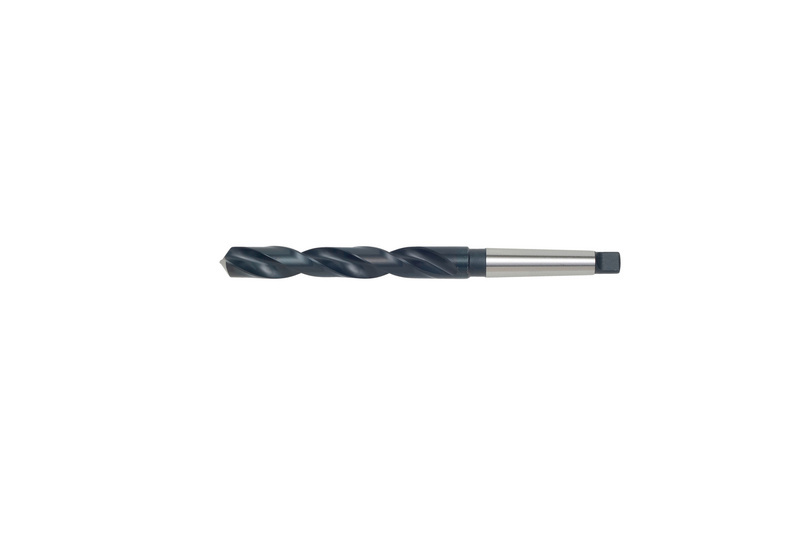

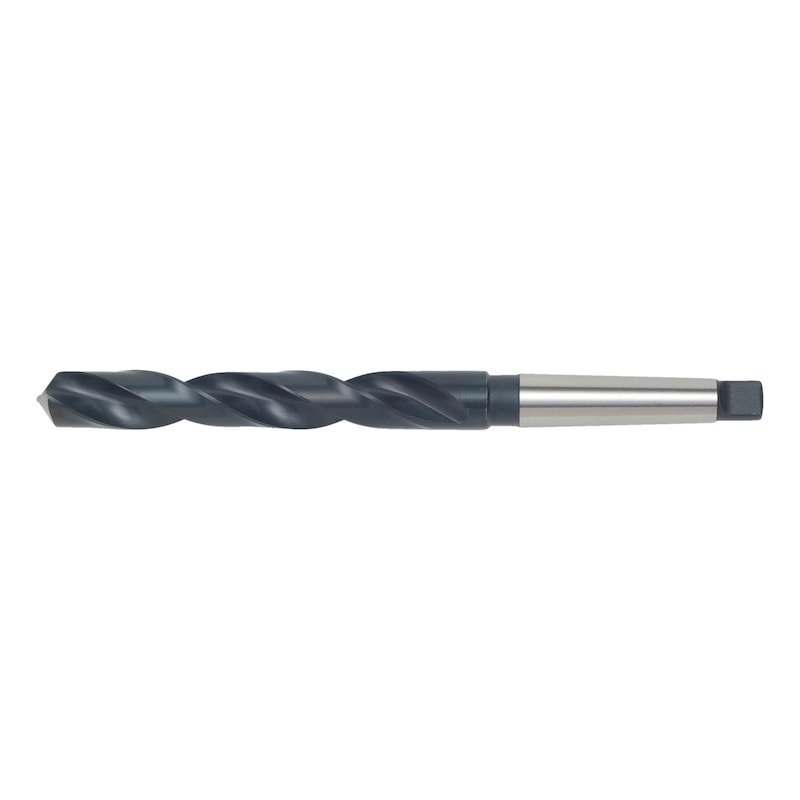

Kónískur bor HSS 17,5mm DIN345

Vörunúmer: 0625 301 750

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Vaporised
Angle of the tip	118 Degree
Length	228 mm
Diameter (Ø)	17.5 mm
Material to be processed	SteelCast iron
Suitable for machine type	Pedestal drilling machine
Service life (points system)	3 of 4 points
Quality	Würth-Standard
Standard / drilling depth	DIN 345 / 5xD
Shank style	Morse taper
Material sub-group
Cutting material	HSS
Self-centring	Yes
Suitable for upright drilling machine (points system)	4 of 4 points
Suitable for milling-drilling centre (points system)	1 of 4 points
Drilling speed (point system)	3 of 4 points
Bore hole quality (point system) ( )	3 of 4 points
Versatility (points system)	2 of 4 points
Drilling behaviour (point system)	3 of 4 points
Chip flute length	130 mm
Max. drilling depth (D)	5xD
Drilling depth	87.5 mm
Suitable for morse taper tools	MK 2
