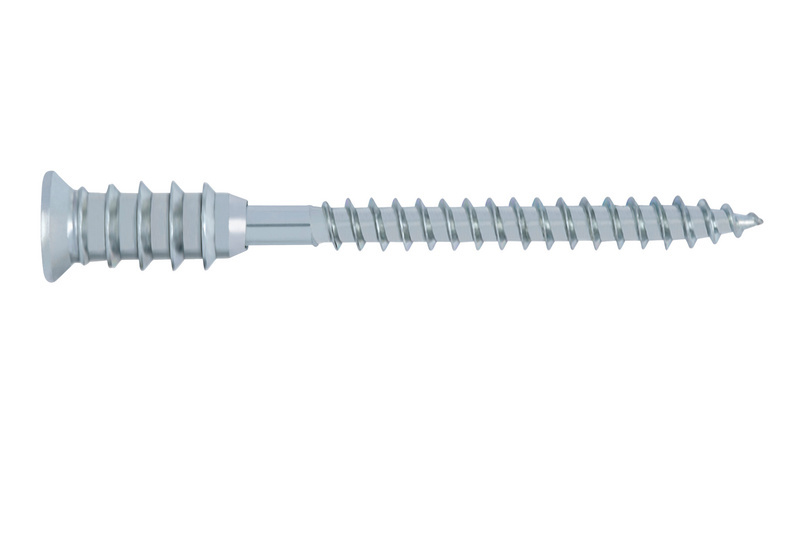

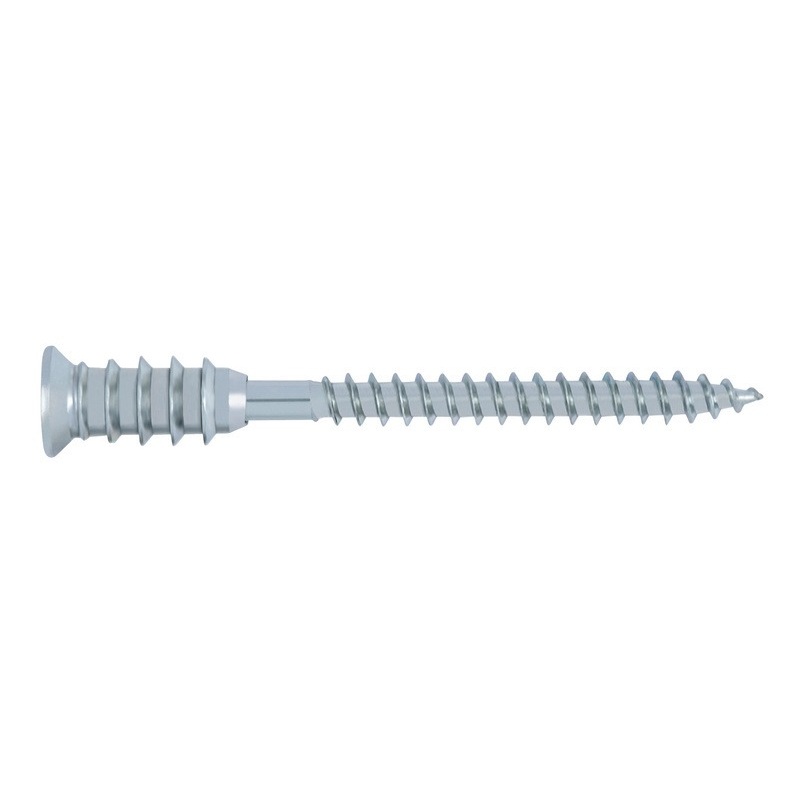

JAMO® stilliskrúfa 6x90 AW30

Vörunúmer: 0234 563 90

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	AW30
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Single thread
Thread design	Partial thread with underhead thread for adjusting
Head details	Under head thread
Area of application	Spacing assemblyAdjustingSubstructure
Shape of tip	Tip
Nominal diameter (d)	6 mm
Length (l)	90 mm
Head diameter (dh)	12.5 mm
Thread length (lg)	56 mm
Core diameter	3.9 mm
Max. screw-in angle	90 Degree
Min. screw-in angle	45 Degree
Suitable for use in the following materials	WoodDerived timber productBoard ply woodSoftwoodDowelOSBChipboardConstruction beech
Approval	Test report 50923397ETA-11/0190
Nominal diameter 2	7.4 mm
Core diameter of head thread	7 mm
