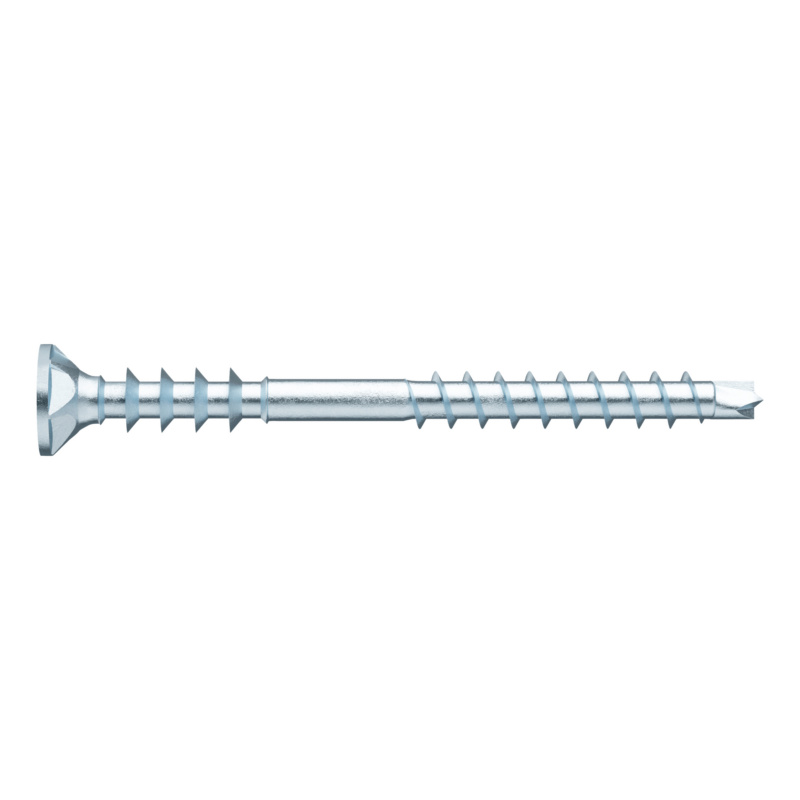

JAMO® Plus 4 stilliskrúfa 6x70 RW40

Vörunúmer: 0234 466 70

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel
Surface	Galvanised
Internal drive	RW40
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Partial thread with underhead thread for adjusting
Head details	Milling pockets
Area of application	Spacing assemblyAdjustingSubstructure
Shape of tip	Drilling tip
Nominal diameter (d)	6 mm
Length (l)	70 mm
Head diameter (dh)	12 mm
Head height (k)	6.6 mm
Thread length (lg)	33 mm
Core diameter	3.9 mm
Max. screw-in angle	90 Degree
Min. screw-in angle	45 Degree
Suitable for use in the following materials	WoodDerived timber productBoard ply woodSoftwoodConstruction beechOSBChipboard
Approval	Test report 50923397ETA-11/0190
Nominal diameter 2	6.8 mm
Core diameter of head thread	3.8 mm
